Overview
Overview

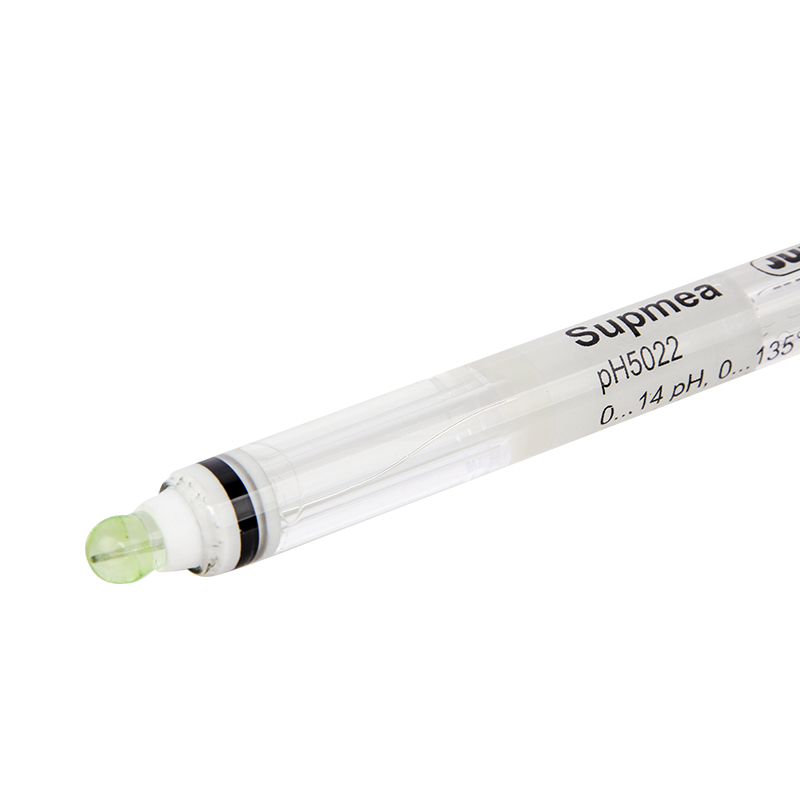

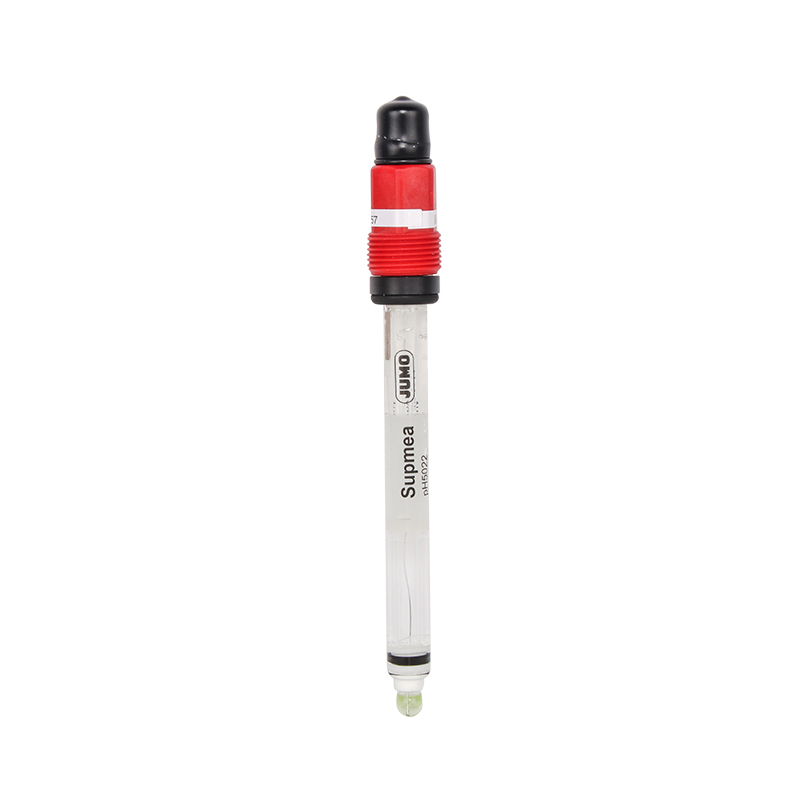

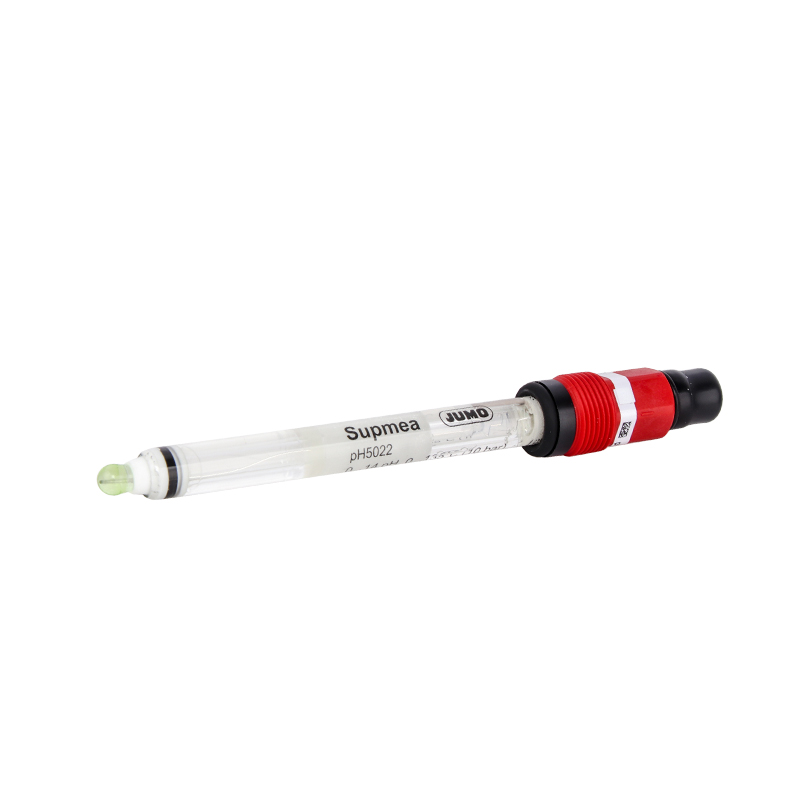

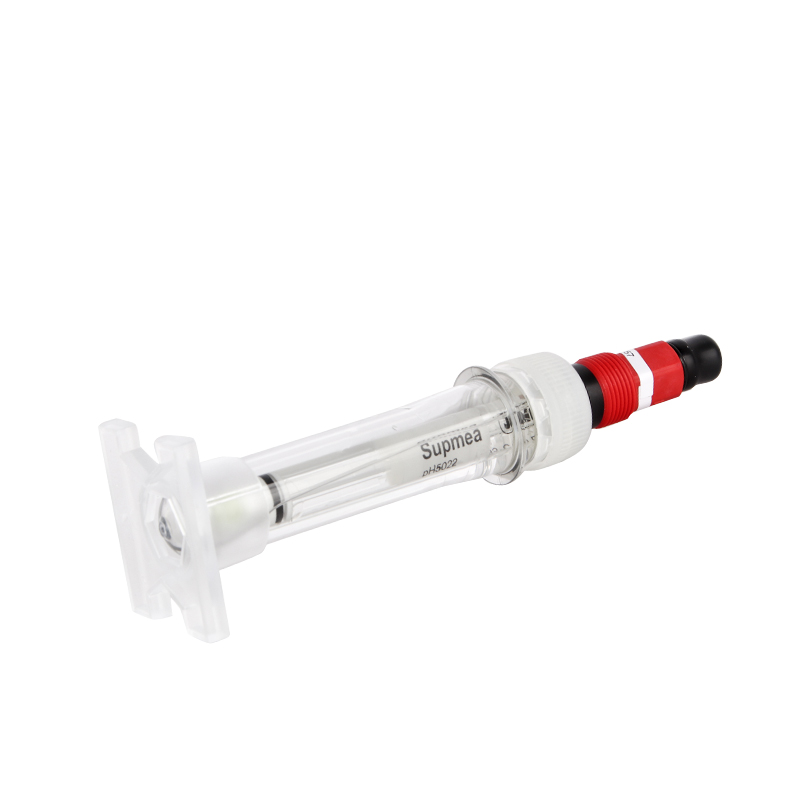

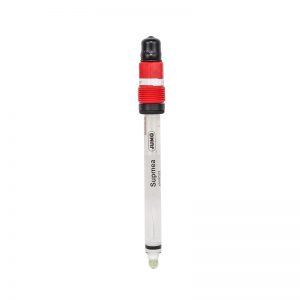

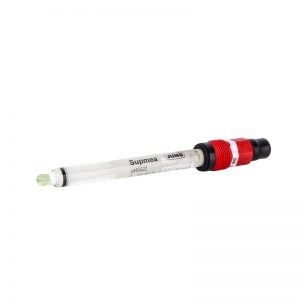

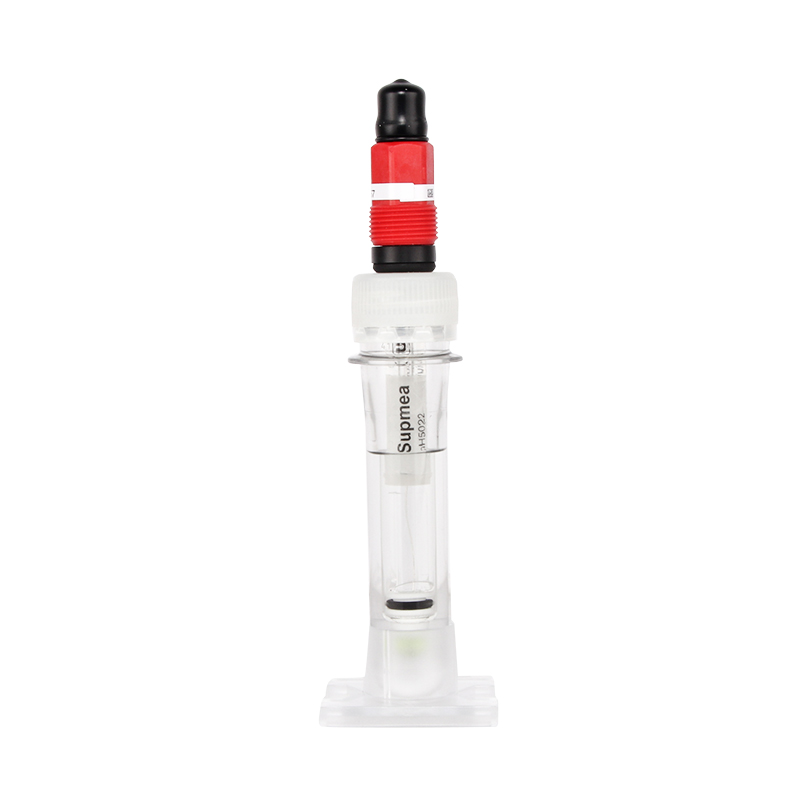

| Product | Glass pH sensor |
| Model | SUP-PH5022 |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Practical response time | < 1 min |
| Installation size | Pg13.5 |
| Heat resistance | 0 ~ 130℃ |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | K8S connector |
Introduction
Introduction
Product advantages
• A dirt-repellent PTFE ring diaphragm with a highly viscous KCl solution (gel)
or a perforated or annular-gap diaphragm with a polymerized solid electrolyte – virtually blockage-free
• Cartridge-style conduction system with a reference electrolyte with no silver ions
• Pressure-resistant versions up to 10 bar (50 °C)
• Temperature range: see order details
• Temperature probe integration options
• Salt reserve option for increasing service life in media with lower conductivity
Order Information
Order Information
| Product | Glass pH sensor |
| Model | SUP-PH5022 |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Practical response time | < 1 min |
| Installation size | Pg13.5 |
| Heat resistance | 0 ~ 130℃ |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | K8S connector |
Installation
Installation of ph electrode
