Overview
Overview
| Product | Glass pH sensor |
| Model | SUP-PH5041 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 95% |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| Temp compensation | NTC 10 KΩ/Pt1000 |
| Heat resistance | 0-90℃ for general cables |
| Pressure resistance | 1 bar at 25 ℃ |
| Connection | Low-noise cable |
Introduction
Introduction

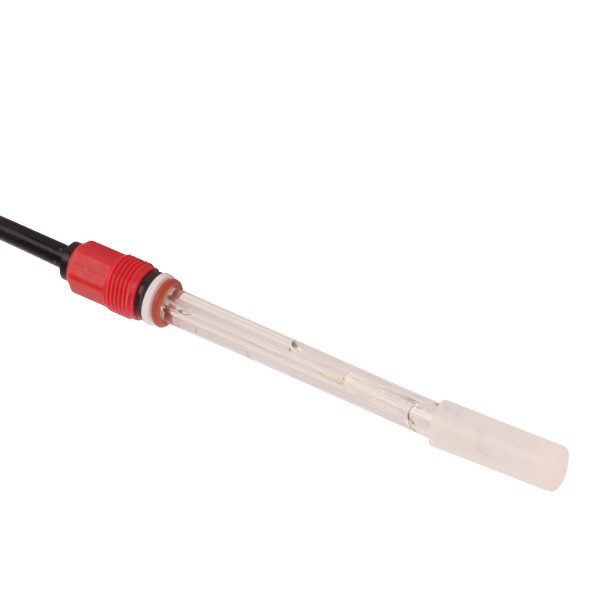

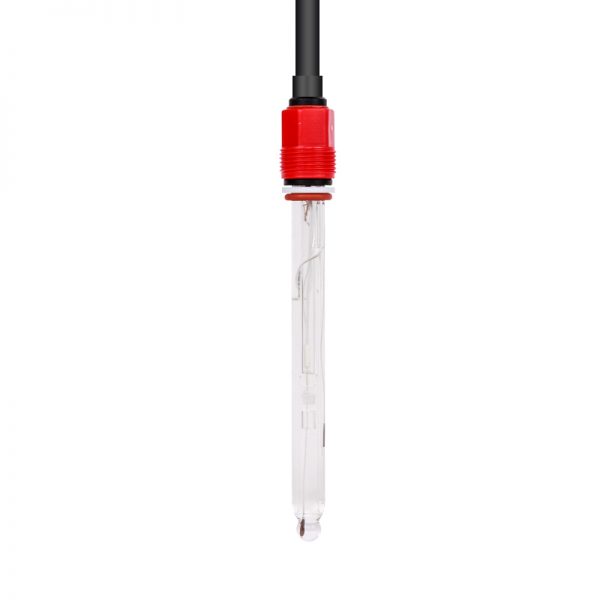

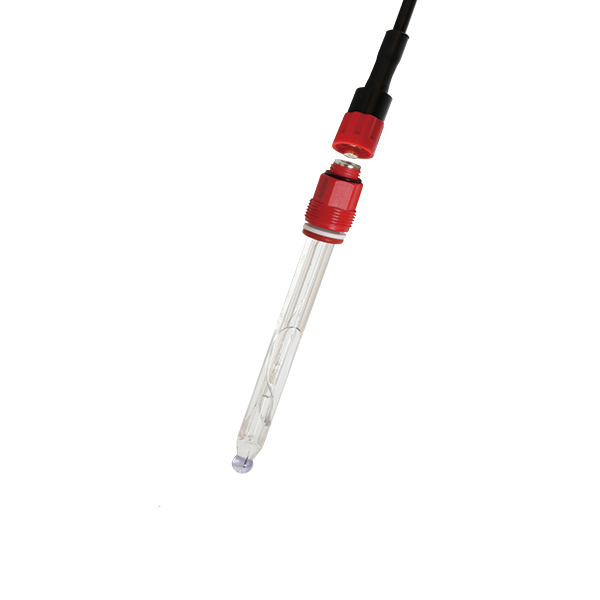

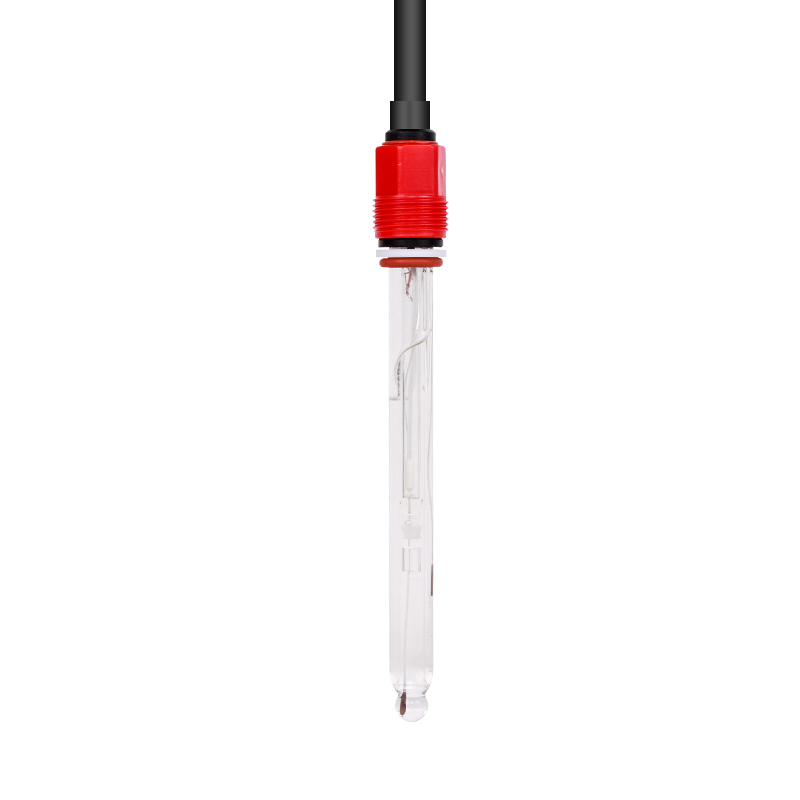

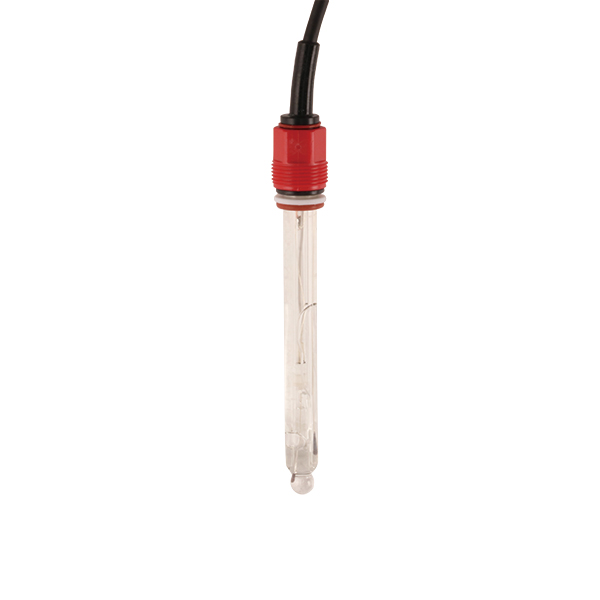

SUP-pH-5041 glass pH sensor
Product advantages
Product advantages
1.Long distance reference diffusion path, extends electrode life greatly in harsh environments.
2.Electrode is made of high quality low-noise cable, make signal output length greater than 40 meters or more, without interference.
3.No supplemental dielectric, a little maintenance.
4.High accuracy, fast response, good repeatability.
5.With silver ions Ag / AgCL reference electrode.
6.Proper operation to extend service life
7.Side or vertically installation to the reaction tank or pipe.
Order Information
Order Information
| Product | Glass pH sensor |
| Model | SUP-PH5041 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 95% |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| Temp compensation | NTC 10 KΩ/Pt1000 |
| Heat resistance | 0-90℃ for general cables |
| Pressure resistance | 1 bar at 25 ℃ |
| Connection | Low-noise cable |
Installation
Installation of ph electrode
