Overview
Overview

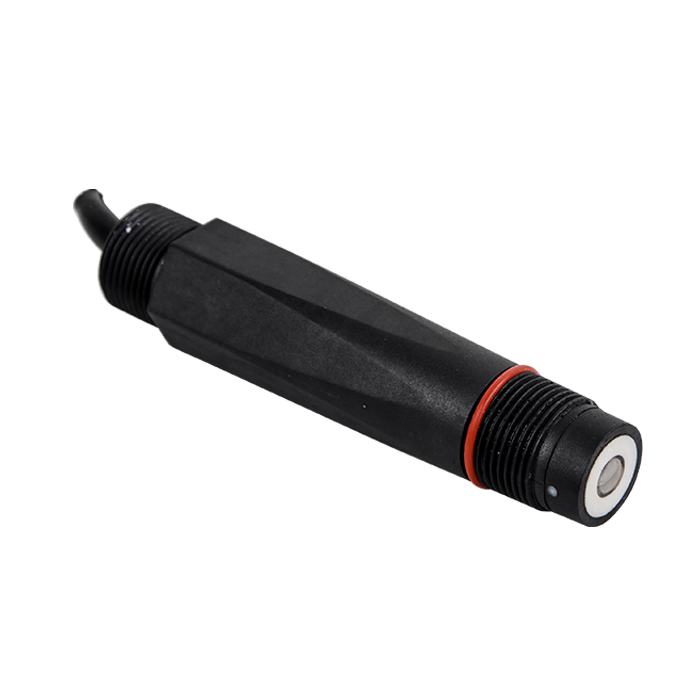

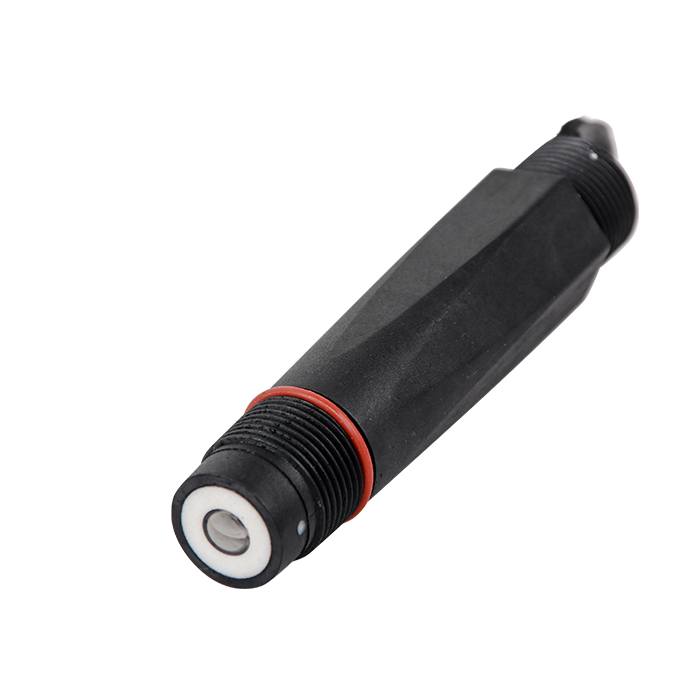

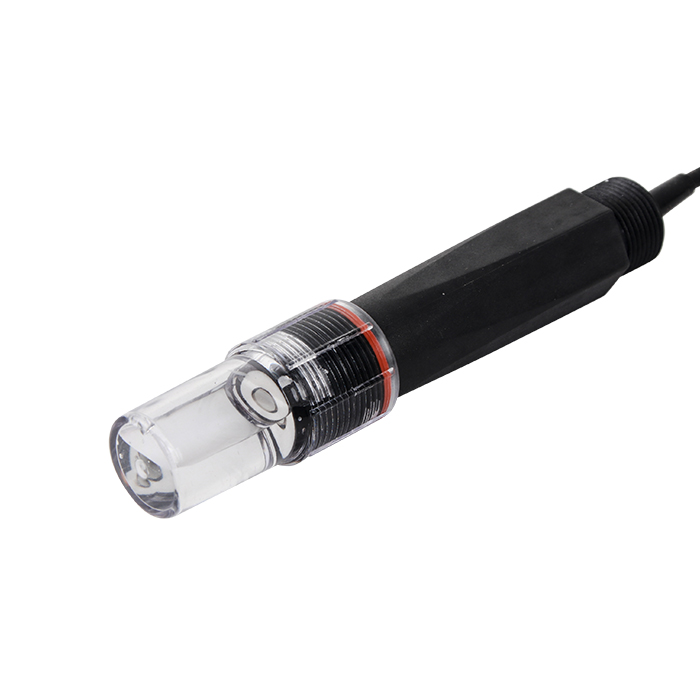

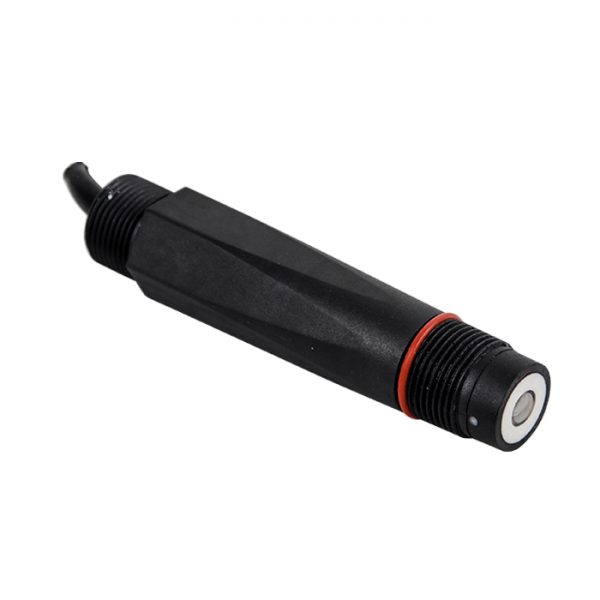

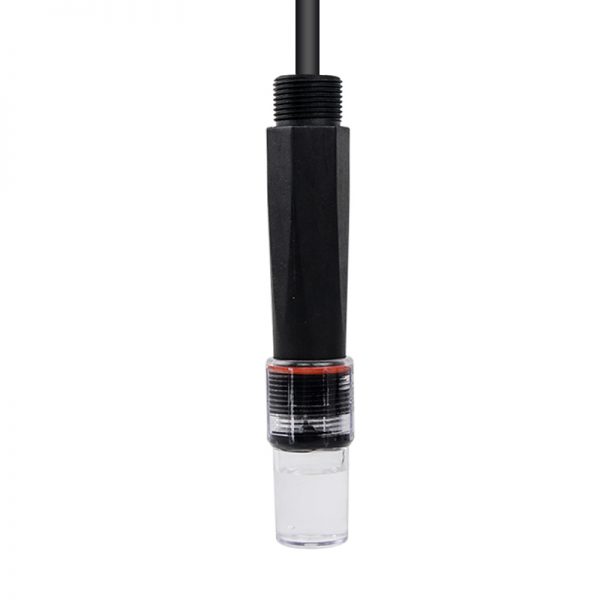

| Product | Flat pH sensor |
| Model | SUP-PH7001 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| NTC | 10 KΩ/2.252KΩ/Pt100/Pt1000 |
| Heat resistance | 0-60℃ for general cables |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | Low-noise cable |
Introduction
Introduction
SUP-7001 Flat pH electrode can be used for pH measurement of flue gas desulfurization (FGD), or other harsh environment, such as whitewash, seriflux, etc.
Function
Function
· Adopt aerogel electrode, easy to maintain.
· Adopt flat glass bulb, good resistance to contamination and impact.
· High accuracy in high temperature or high pH value.
· High-quality low-noise cable, can achieve 60m long distance signal transmission.
Order Information
Order Information
| Product | Flat pH sensor |
| Model | SUP-PH7001 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| NTC | 10 KΩ/2.252KΩ/Pt100/Pt1000 |
| Heat resistance | 0-60℃ for general cables |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | Low-noise cable |
Installation
1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation
