Overview
Overview
| Product | TDS sensor, EC sensor, Resistivity sensor |
| Model | SUP-TDS-7001 |
| Measure range | 0.01 electrode: 0.01~20us/cm |
| 0.1 electrode: 0.1~200us/cm | |
| 1.0 electrode: 1~2000us/cm | |
| Accuracy | ±1%FS |
| Thread | G3/4 |
| Pressure | 8 bar |
| Material | 316 stainless steel |
| Temp compensation | NTC10K (PT1000, PT100, NTC2.252K optional) |
| Temperature range | -10-100℃ |
| Temperature accuracy | ±3℃ |
| Ingress protection | IP68 |
Introduction
Introduction

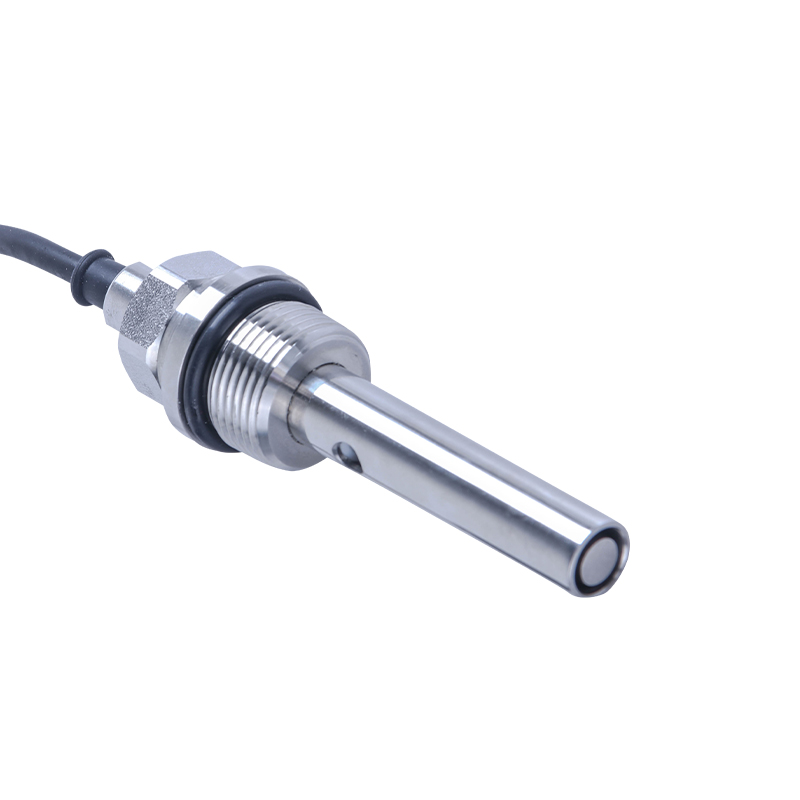

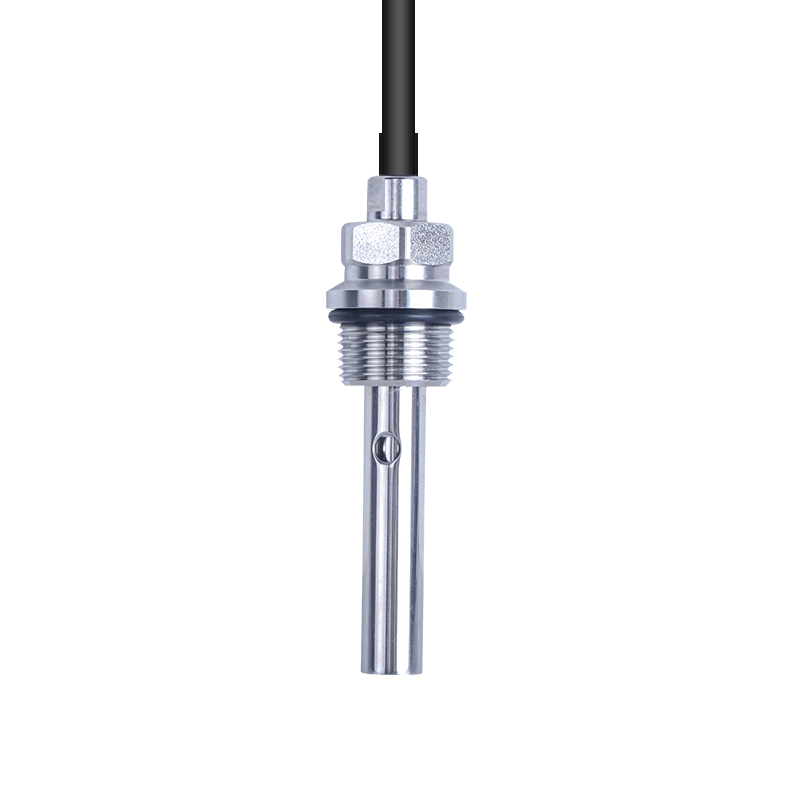

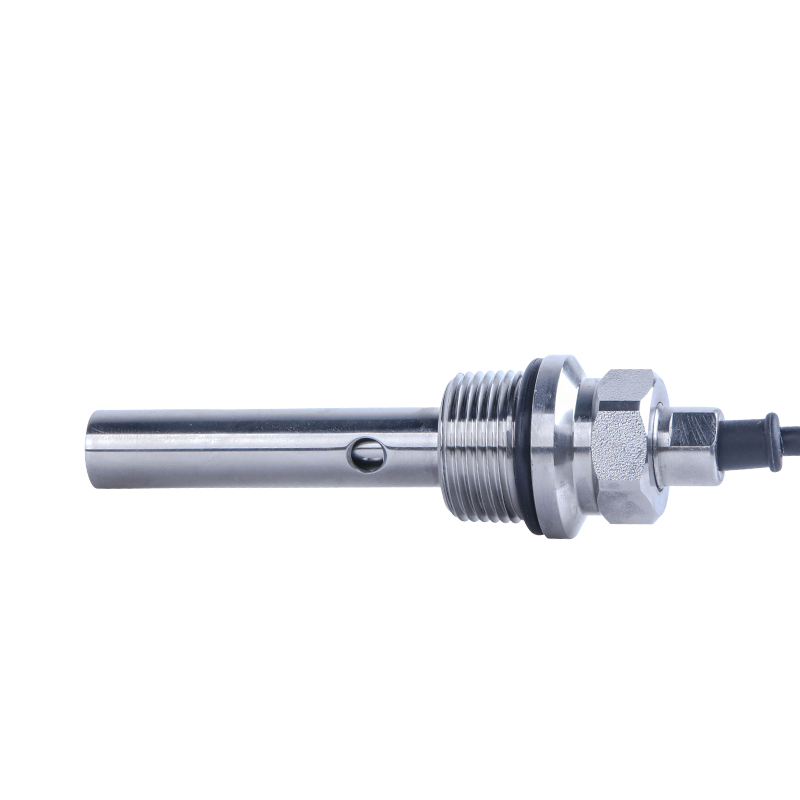

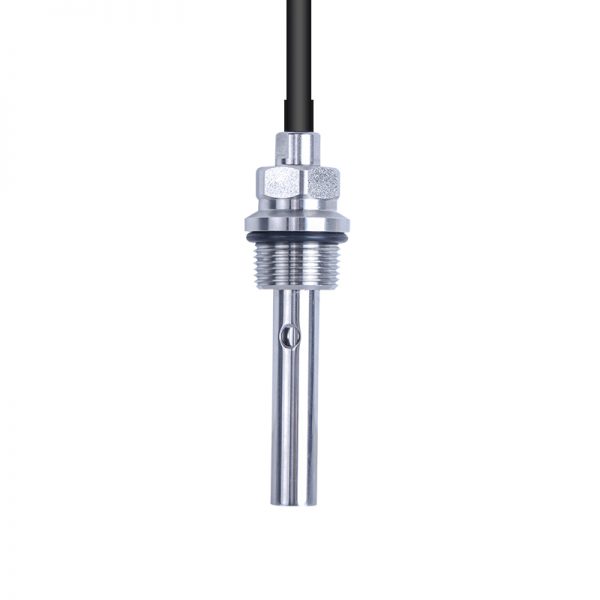

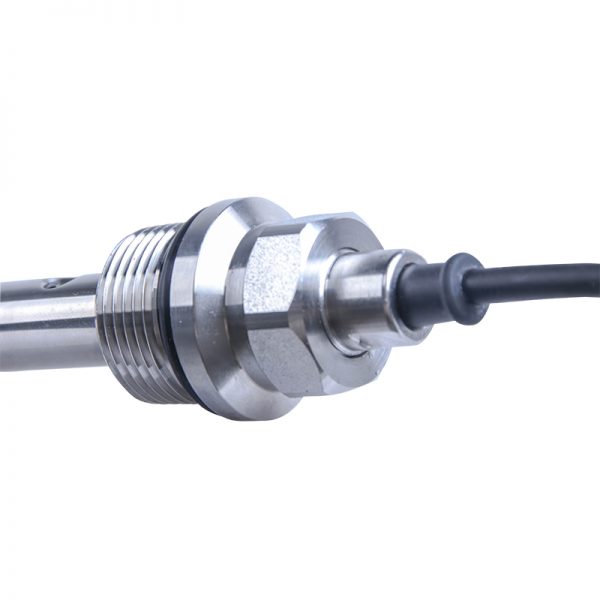

SUP-TDS-7001 online conductivity/resistivity sensor, an intelligent online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or Resistivity value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
Features
Features
- A variety of intelligent equipment matching.
- Intelligent temperature compensation design: Instrument integrated automatic, manual dual temperature compensation mode Support NTC10K temperature compensation components, suitable for a variety of measurement occasions, temperature compensation type a key adjustable.
- A variety of functions in one: conductivity/ EC/ TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring.
Order Information
Order Information
| Product | TDS sensor, EC sensor, Resistivity sensor |
| Model | SUP-TDS-7001 |
| Measure range | 0.01 electrode: 0.01~20us/cm |
| 0.1 electrode: 0.1~200us/cm | |
| 1.0 electrode: 1~2000us/cm | |
| Accuracy | ±1%FS |
| Thread | G3/4 |
| Pressure | 8 bar |
| Material | 316 stainless steel |
| Temp compensation | NTC10K (PT1000, PT100, NTC2.252K optional) |
| Temperature range | -10-100℃ |
| Temperature accuracy | ±3℃ |
| Ingress protection | IP68 |
