·Turbidity transmitter
The transmitter can be used to display data measured by the sensor, so the user can get the 4-20mA analog output by transmitter’s interface configuration and calibration. And it can make relay control, digital communications, and other functions a reality. The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields.
| Product | Turbidity meter |
| Model | SUP-PTU200 |
| Display | 128 * 64 dot matrix LCD with LED backlight, |
| which can be operated under the direct sunlight | |
| Power supply | AC：AC220V, 50Hz, 5W; DC：DC24V |
| Output | Three-way analog output 4-20mA, |
| Note: the maximum load is 500 ohms | |
| Relay | Three-way relay can be set up |
| Digital communication |
MODBUS RS485 communication function, which can transmit real-time measurements |
| Warranty period | 1 year |
| Material of outside shell |
Lower casing：Aluminum with powder covering |
| cover：PA66+GF25+FR | |
| Ingress protection | IP65 |
| Size | 145*125*162mm L*W*H |
| Weight | 1.3KG |
Product Features
Product Features
SUP-PTU200 Turbidity Analyzer based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
Description
Description
Order Information
Order Information
Turbidity transmitter
The transmitter can be used to display data measured by the sensor, so the user can get the 4-20mA analog output by transmitter’s interface configuration and calibration. And it can make relay control, digital communications, and other functions a reality. The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields. The transmitter diagram is shown as figure 1.

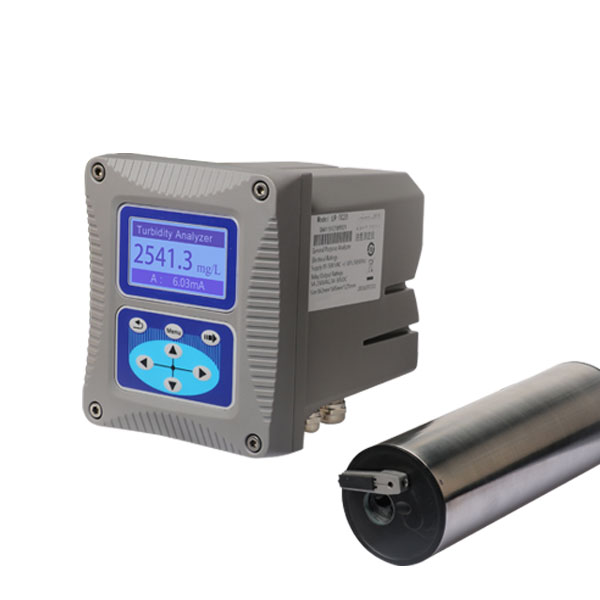

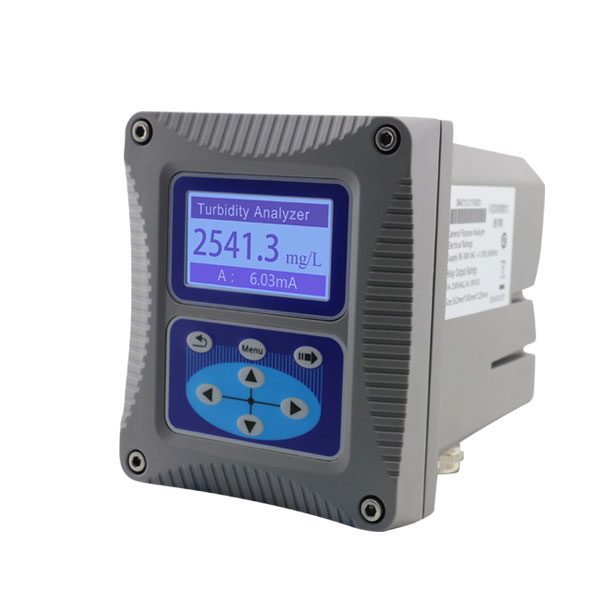

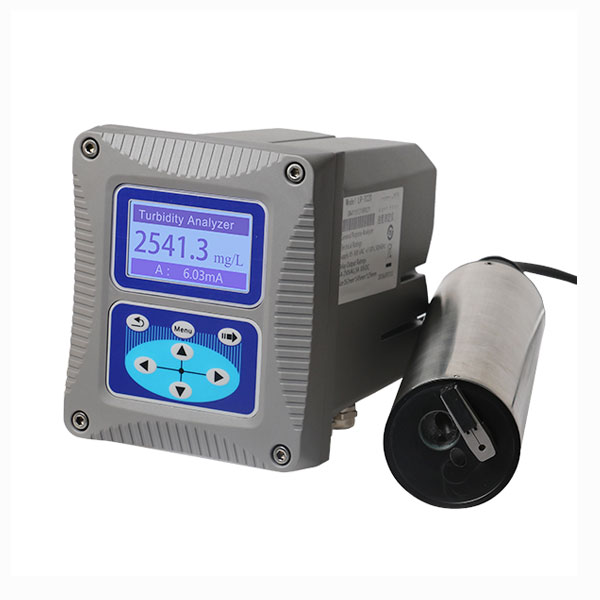

Figure 1 Transmitter
| Product | Turbidity meter |
| Model | SUP-PTU200 |
| Display | 128 * 64 dot matrix LCD with LED backlight, |
| which can be operated under the direct sunlight | |
| Power supply | AC：AC220V, 50Hz, 5W; DC：DC24V |
| Output | Three-way analog output 4-20mA, |
| Note: the maximum load is 500 ohms | |
| Relay | Three-way relay can be set up |
| Digital communication |
MODBUS RS485 communication function, which can transmit real-time measurements |
| Warranty period | 1 year |
| Material of outside shell |
Lower casing：Aluminum with powder covering |
| cover：PA66+GF25+FR | |
| Ingress protection | IP65 |
| Size | 145*125*162mm L*W*H |
| Weight | 1.3KG |
Installation
| 1- sensor interface | 2- grounding |
| 3- power supply interface | 4- three-way relay |
| 5- 4-20mA two-way interface | 6- 485 communication interface |
