Overview
Overview

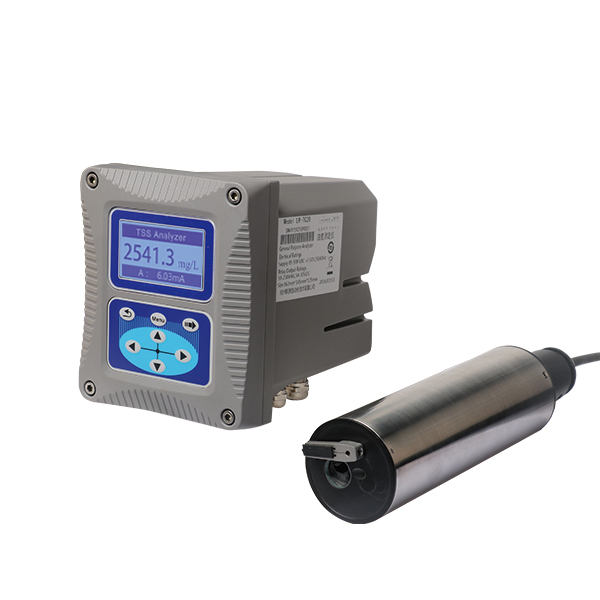

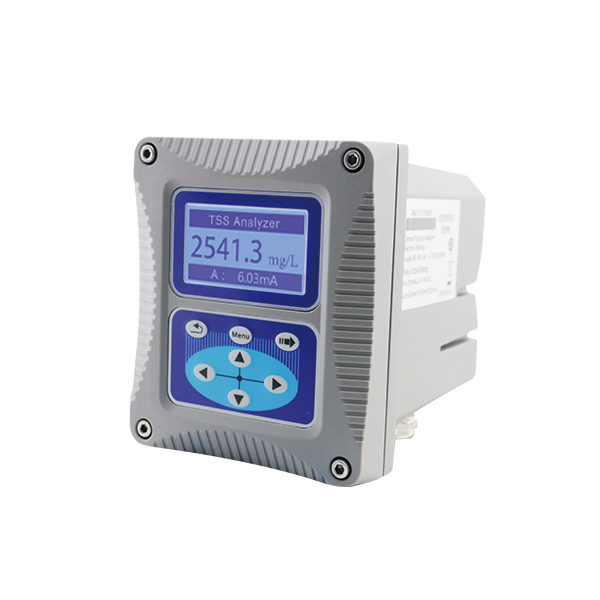

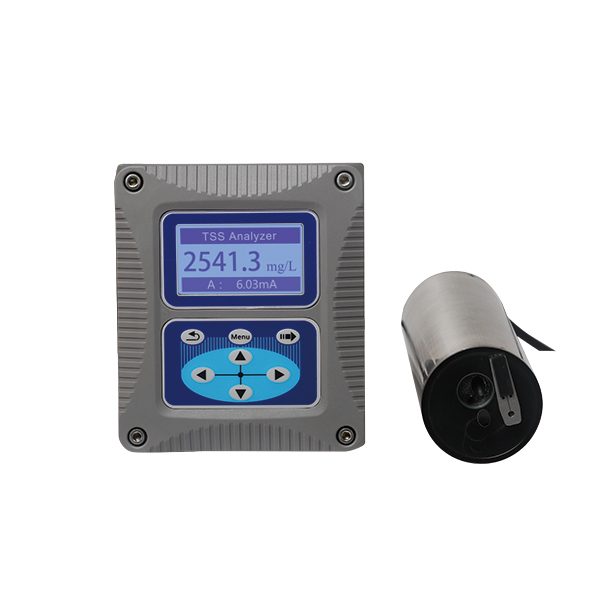

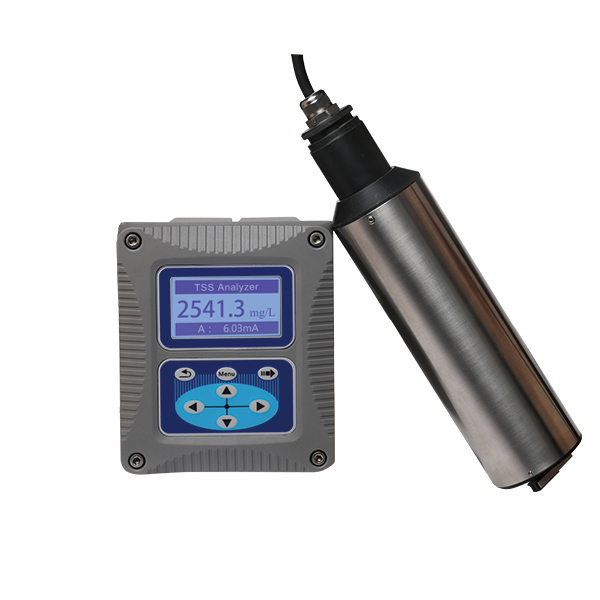

·Suspended Solids (Sludge Concentration/ TSS/ MLSS) transmitter
| Product | Suspended Solids(Sludge Concentration/ TSS/ MLSS) meter |
| Model | SUP-PSS200 |
| Main materials | lower casing：Aluminum with powder covering |
| cover：PA66+GF25+FR | |
| Waterproof rate | IP65 |
| Storage temperature | -20~70℃ |
| Operation Temperature | -15~60℃ |
| Output | three-way analog output 4-20mA, response parameters and corresponding scope can be programmed
Note: the maximum load is 500 ohms |
| Relay | three-way relay can be set up, and response parameters and response values can be programmed |
| Display | 128 * 64 dot matrix LCD with LED backlight |
| Digital Communication | MODBUS RS485 communication function, which can transmit real-time measurements |
| Power Supply | AC：AC220V, 50HZ, 5W DC：DC24V |
| Size | 145*125*162mm L*W*H |
| Weight | 1.3 KG |
·Suspended Solids (Sludge Concentration/ TSS/ MLSS) Sensor
| Product | Suspended Solids(Sludge Concentration/ TSS/ MLSS) sensor |
| Model | SUP-PSS-9011 |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover：PVC；Cable: PVC | |
| Waterproof rate | IP68 |
| Measurement range | 0.01-20000 mg/L、0.01-45000 mg/L 、0.01-120000 mg/L |
| Indication resolution | Less than ± 5% of the measured value |
| Pressure range | ≤0.4Mpa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage temperature | -15~65℃ |
| Environment temperature |
0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Sensor size | Diameter 60mm* Length 256mm |
| Sensor weight | 1.65 KG |
Product Features
Product Features
SUP-PPS200 suspended solids meter, based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
Description
Description
Order Information
Order Information
·Suspended Solids (Sludge Concentration) transmitter
| Product | Suspended Solids meter |
| Model | SUP-PSS200 |
| Main materials | lower casing：Aluminum with powder covering |
| cover：PA66+GF25+FR | |
| Waterproof rate | IP65 |
| Storage temperature | -20~70℃ |
| Operation Temperature | -15~60℃ |
| Output | three-way analog output 4-20mA, response parameters and corresponding scope can be programmed
Note: the maximum load is 500 ohms |
| Relay | three-way relay can be set up, and response parameters and response values can be programmed |
| Display | 128 * 64 dot matrix LCD with LED backlight |
| Digital Communication | MODBUS RS485 communication function, which can transmit real-time measurements |
| Power Supply | AC：AC220V, 50HZ, 5W DC：DC24V |
| Size | 145*125*162mm L*W*H |
| Weight | 1.3 KG |
·Suspended Solids (Sludge Concentration) Sensor
| Product | Suspended Solids sensor |
| Model | SUP-PSS-9011 |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover：PVC；Cable: PVC | |
| Waterproof rate | IP68 |
| Measurement range | 0.01-20000 mg/L、0.01-45000 mg/L 、0.01-120000 mg/L |
| Indication resolution | Less than ± 5% of the measured value |
| Pressure range | ≤0.4Mpa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage temperature | -15~65℃ |
| Environment temperature |
0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Sensor size | Diameter 60mm* Length 256mm |
| Sensor weight | 1.65 KG |

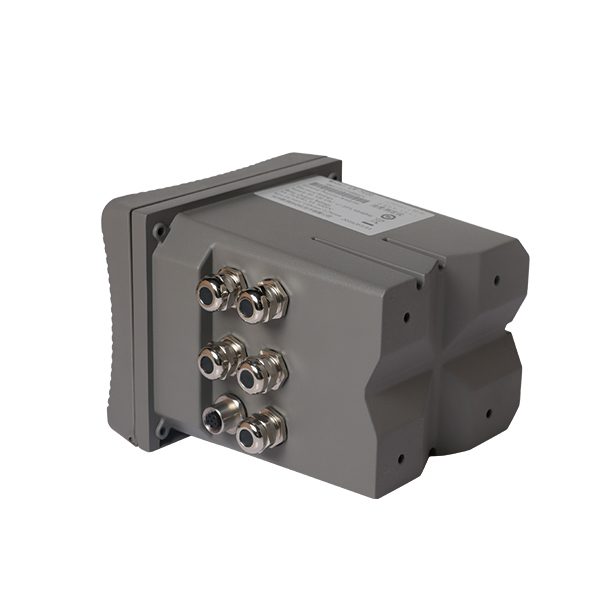

Installation
| 1- sensor interface | 2- grounding |
| 3- power supply interface | 4- three-way relay |
| 5- 4-20mA two-way interface | 6- 485 communication interface |
