Overview
Overview

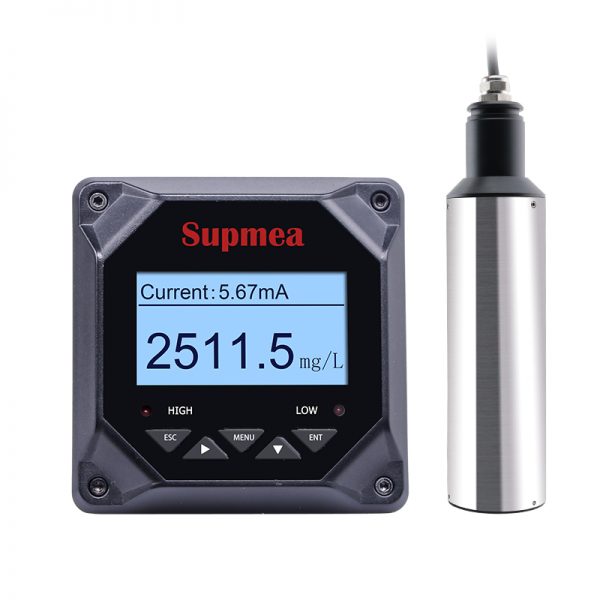

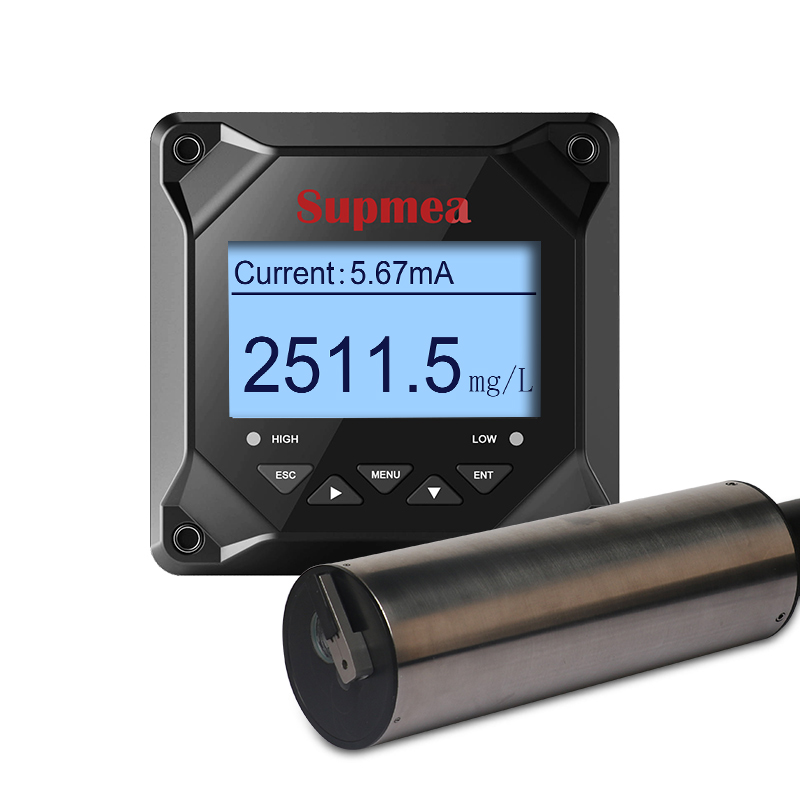

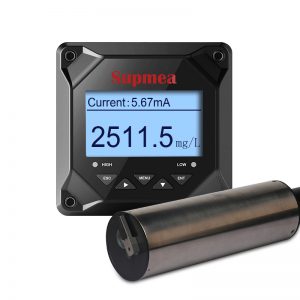

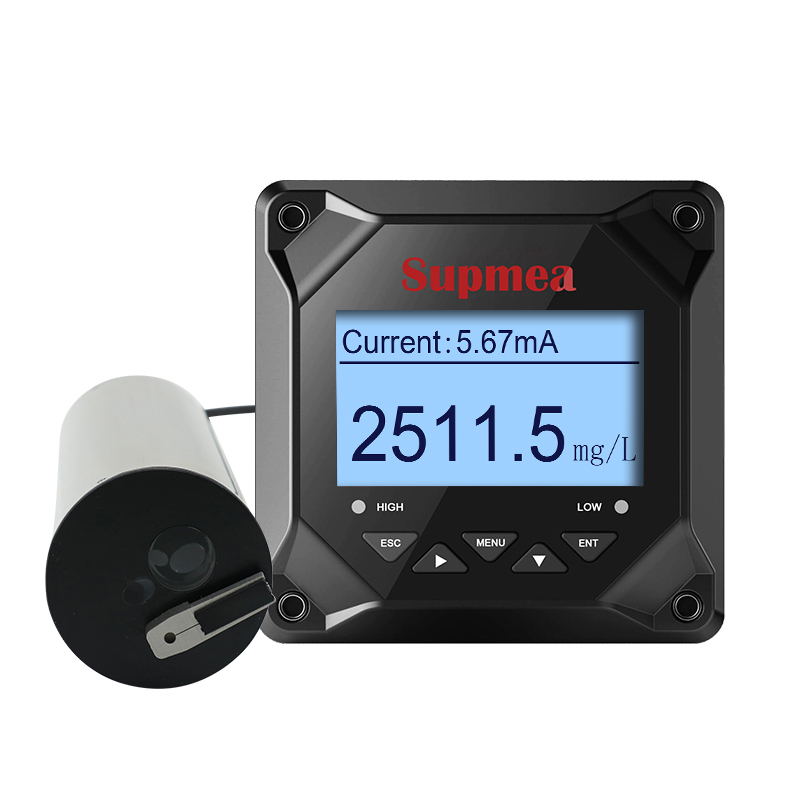

| Product | Suspended solids/ TSS/ MLSS meter |
| Model | SUP-PSS100 |
| Measure range | 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L |
| Indication resolution | Less than ± 5% of the measured value |
| Pressure range | ≤0.4MPa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage Temperature | -15~65℃ |
| Environment temp | 0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover: PVC; Cable: PVC | |
| Ingress protection | IP68(sensor) |
| Power Supply | AC220V±10%,5W Max,50Hz/60Hz |
Product Features
Product Features
Order Information
Order Information
| Product | Suspended solids/ TSS/ MLSS meter |
| Model | SUP-PSS100 |
| Measure range | 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L |
| Indication resolution | Less than ± 5% of the measured value |
| Pressure range | ≤0.4MPa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage Temperature | -15~65℃ |
| Environment temp | 0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover: PVC; Cable: PVC | |
| Ingress protection | IP68(sensor) |
| Power Supply | AC220V±10%,5W Max,50Hz/60Hz |
Installation
