Overview
Overview
| Product | pH meter, pH controller |
| Model | SUP-pH6.0 |
| Measure range | pH: 0-14 pH, ±0.02 |
| ORP: -1000 ~1000mV, ±1mV | |
| Resolution | 0.01pH; 1mV |
| Stability | pH:≤0.02pH/24h; ORP: ≤3mV/24h |
| Measuring medium | Liquid |
| Input Resistance | ≥10~12Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature Range | 0~100℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.01%FS |
| Power supply | AC220V±10%, 50Hz |
| Relay output | 250V, 3A |
Introduction
Introduction

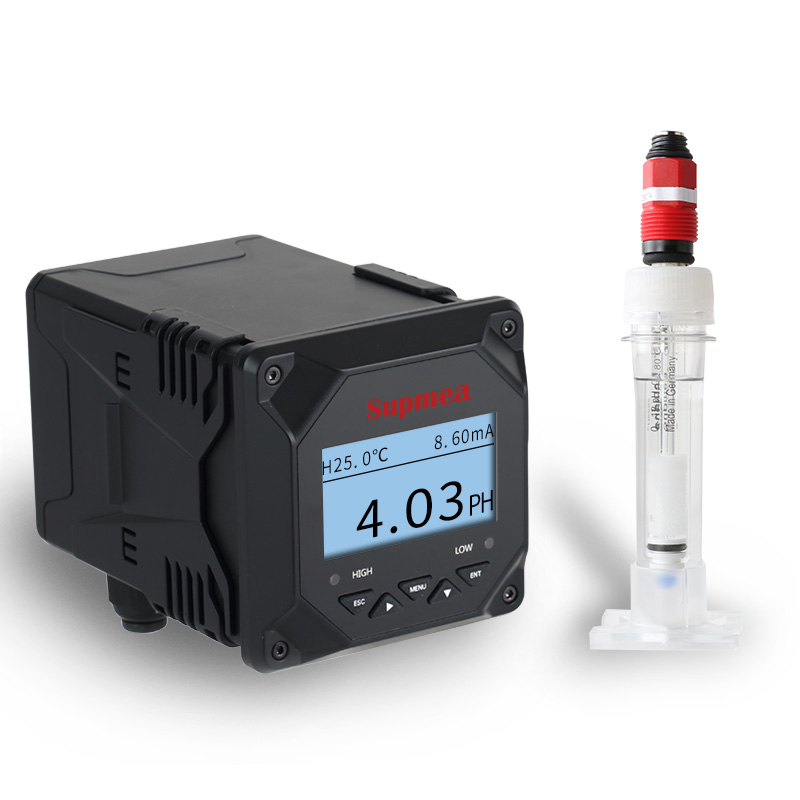

SUP-pH6.0 Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.
Features
Features
• Automatically Temperature Compensation
• Directly switchable to PH or ORP
• Large LCD display with background lighting
• PH or ORP sensors can be connected thanks to the sensor supply integrated in the output
• Using the setup program: user-friendly programming
• 4-20mA analog output
• RS485 communication
• Relay output
Description
Description
· Supmea sixth-generation ph meter with 20 years of experience accumulated.
For precise measurement!

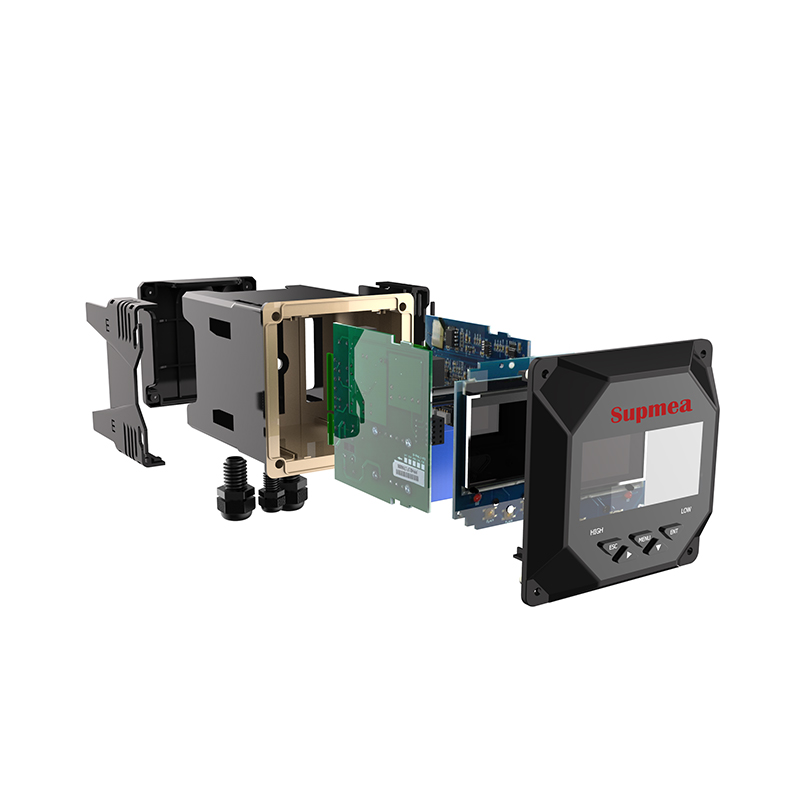

· Professional Industrial Design Team design the product appearance!
Choose pH electrode
Choose pH electrode
Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.

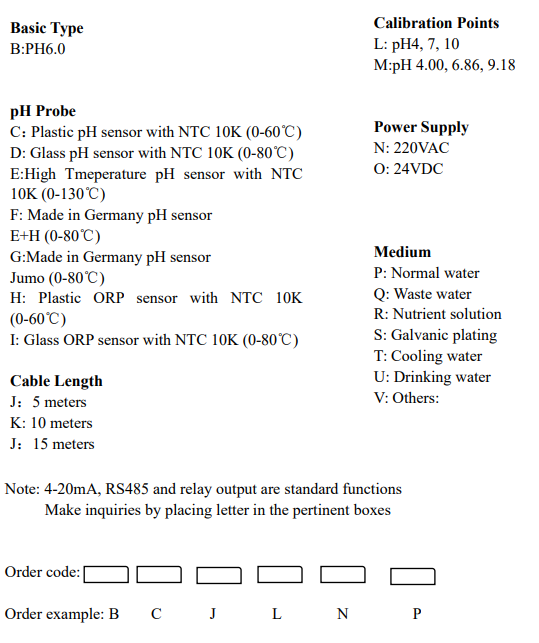

Order Information
Order Information
| Product | pH meter controller |
| Model | SUP-pH6.0 |
| Measure range | pH: 0-14 pH, ±0.02 |
| ORP: -1000 ~1000mV, ±1mV | |
| Resolution | 0.01pH; 1mV |
| Stability | pH:≤0.02pH/24h; ORP: ≤3mV/24h |
| Measuring medium | Liquid |
| Input Resistance | ≥10~12Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature Range | 0~100℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.01%FS |
| Power supply | AC220V±10%, 50Hz |
| Relay output | 250V, 3A |
Installation
Installation
Industry online pH controller Instrument wiring
Wiring diagram
Product Installation
Industry online pH meter controller
Install a 92.5 * 92.5 mounting hole on the instrument cabinet or mounting panel
The instrument into the mounting hole and then buckle on the butterfly, as shown below
Installation of ph electrode
Schematic diagram of common installation method
