Overview
Overview

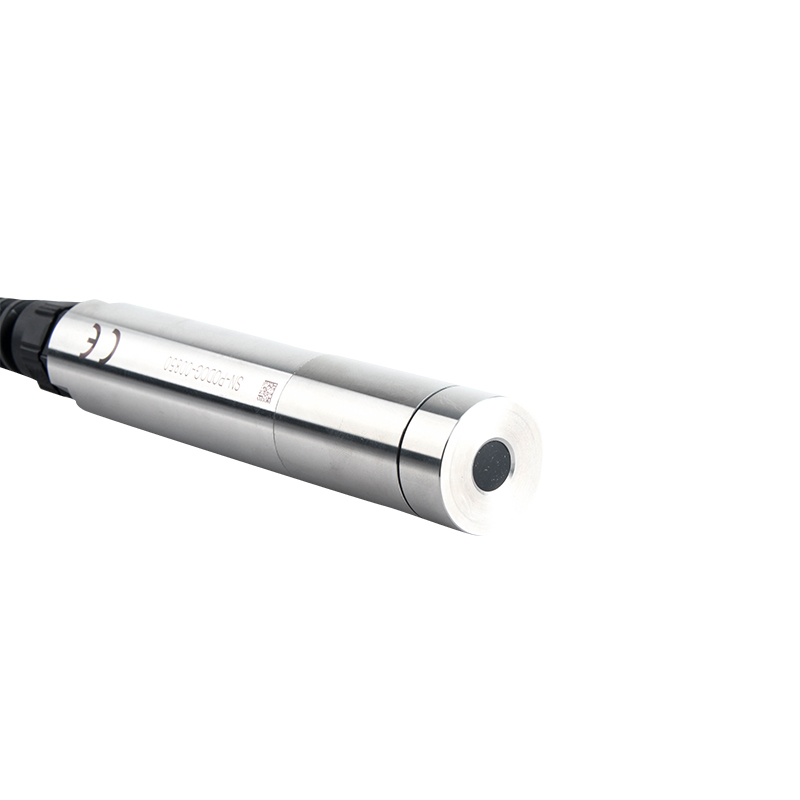

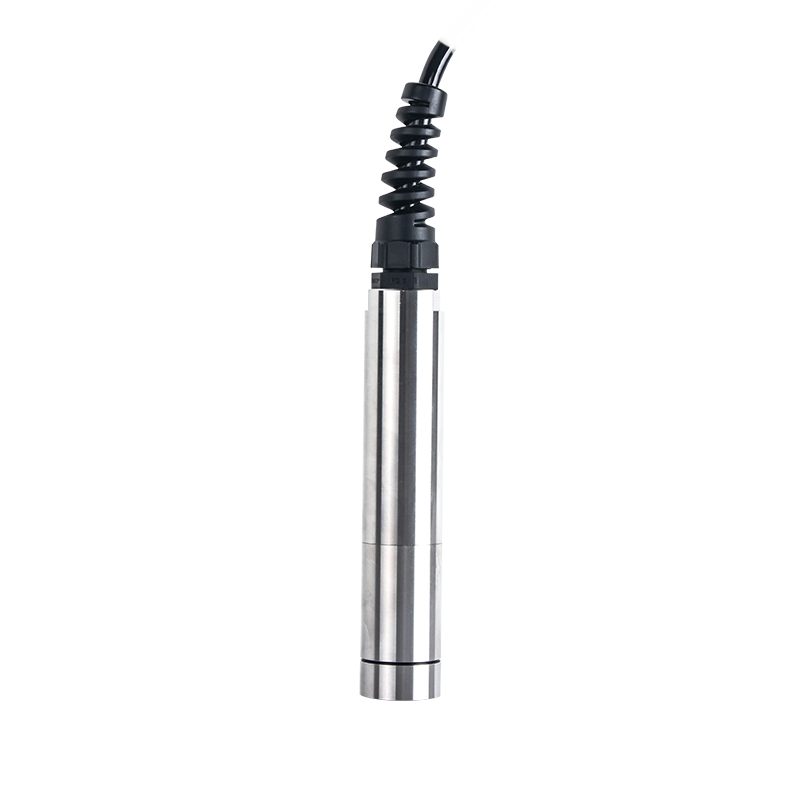

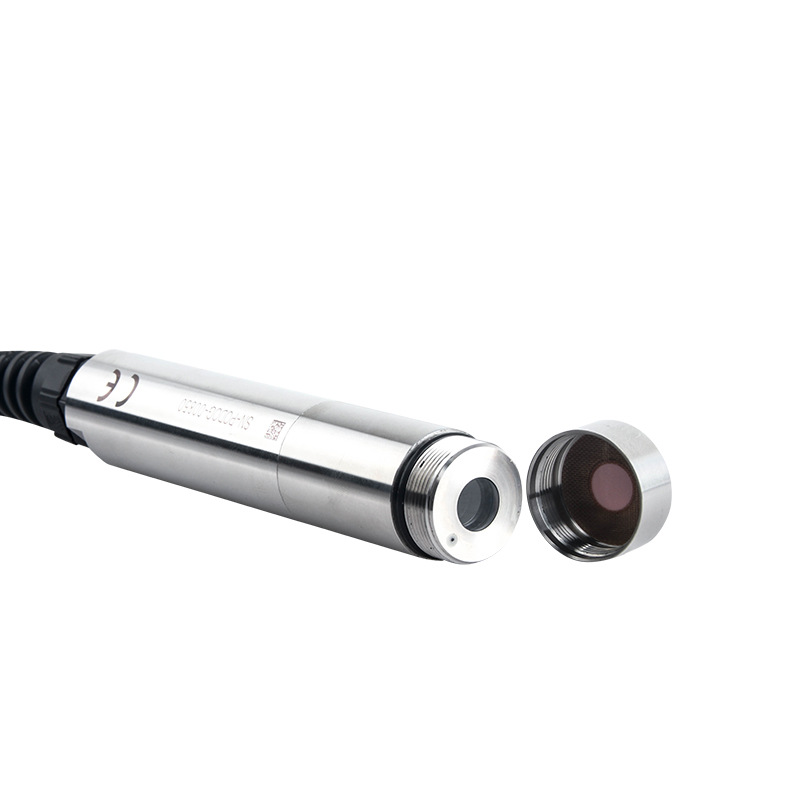

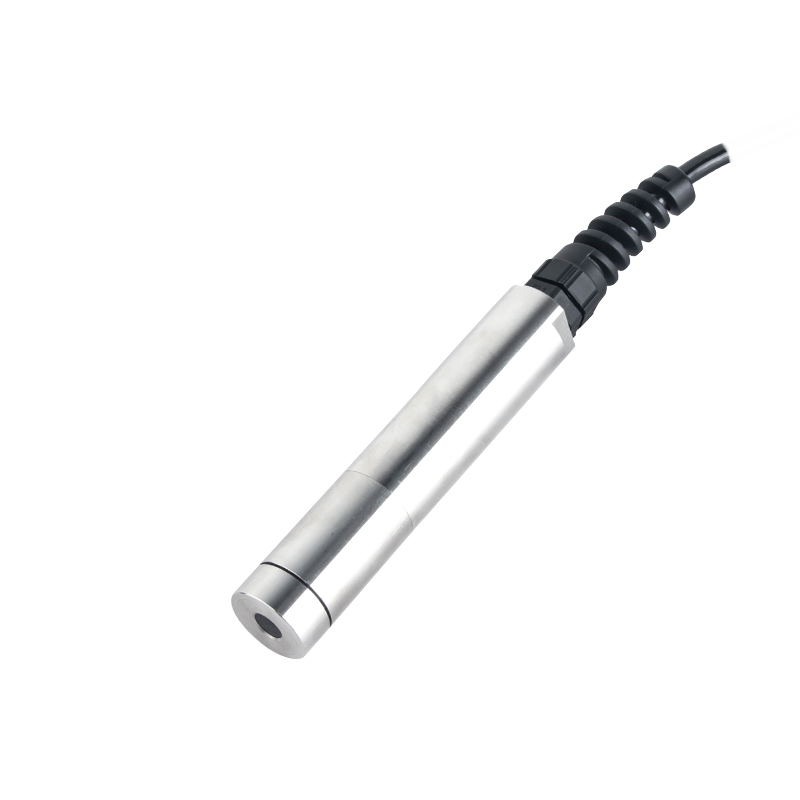

| Product | Dissolved Oxygen sensor |
| Model | SUP-DO7016 |
| Measure range | 0.00 to 20.00 mg/L |
| Resolution | 0.01 |
| Response time | 90% of the value in less than 60 seconds |
| Temperature compensation | Via NTC |
| Stocking temperature | -10°C to + 60°C |
| Signal interface | Modbus RS-485 (standard) and SDI-12 (option) |
| Sensor power-supply | 5 to 12 volts |
| Protection | IP68 |
| Material | Stainless steel 316L, New : body in Titanium |
| Maximum pressure | 5 bars |
Product Features
Product Features
Order Information
Order Information
| Product | Dissolved Oxygen sensor |
| Model | SUP-DO7016 |
| Measure range | 0.00 to 20.00 mg/L |
| Resolution | 0.01 |
| Response time | 90% of the value in less than 60 seconds |
| Temperature compensation | Via NTC |
| Stocking temperature | -10°C to + 60°C |
| Signal interface | Modbus RS-485 (standard) and SDI-12 (option) |
| Sensor power-supply | 5 to 12 volts |
| Protection | IP68 |
| Material | Stainless steel 316L, New : body in Titanium |
| Maximum pressure | 5 bars |
Installation
