Overview
Overview

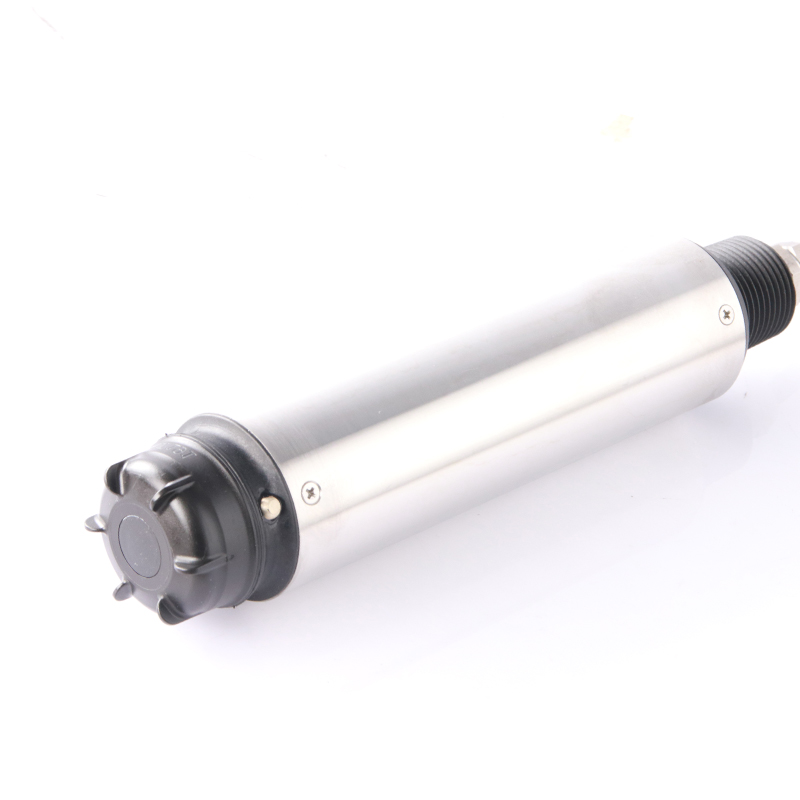

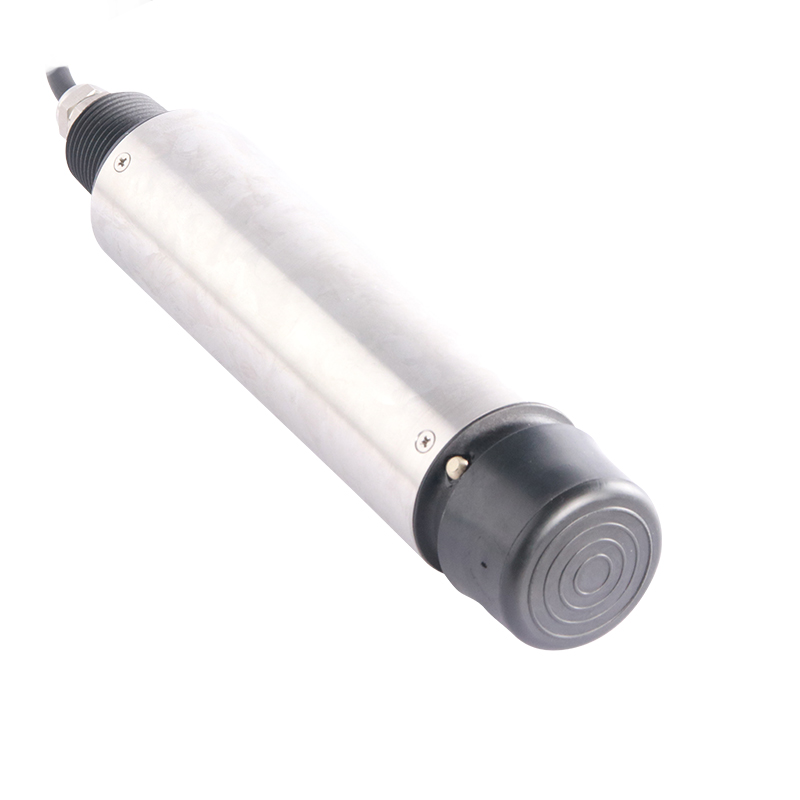

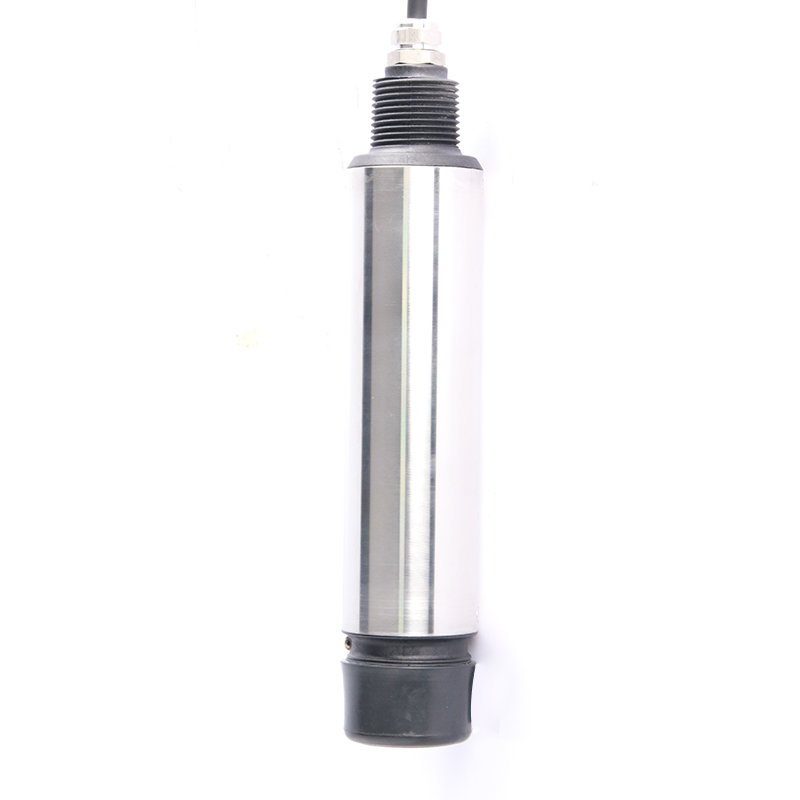

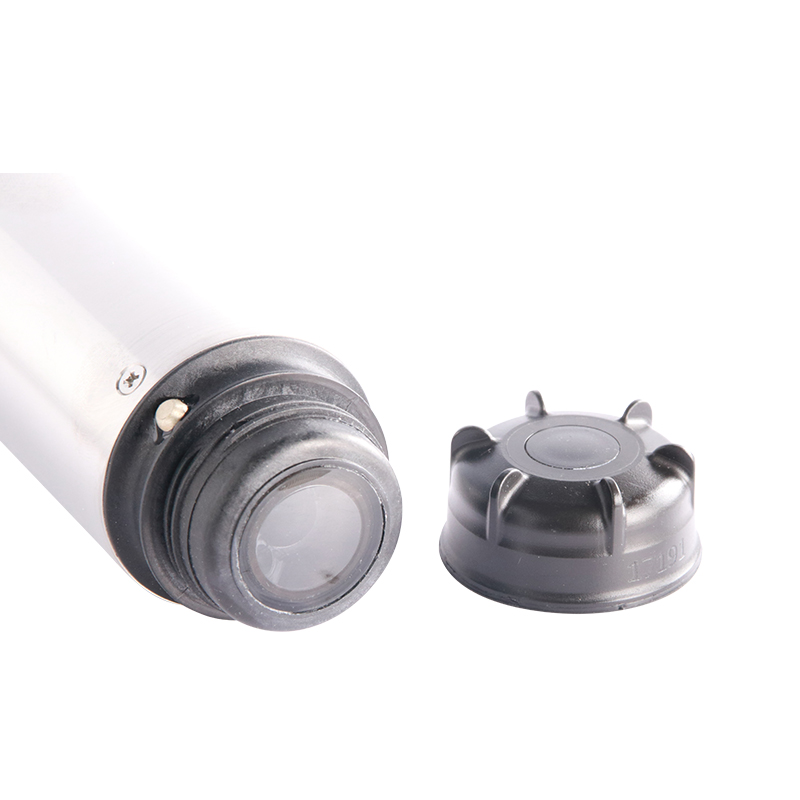

| Product | Dissolved oxygen sensor |
| Model | SUP-DO7012 |
| Measure range | 0-20mg/L,0-20ppm,0-45deg C |
| Accuracy | Resolution:±3%, Temperature: ±0.5℃ |
| Pressure range | ≤0.3Mpa |
| Power supply | 12 VDC |
| Main material | SUS316L+PVC (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| O-ring: Fluoro-rubber; Cable: PVC | |
| Cable length | Standard 10-Meter Cable, Max : 100m |
| Display | 128 * 64 dot matrix LCD with LED backlight |
| Power supply | 12 VDC |
| Calibration | Automatic air calibration,Sample calibration |
| Storage Temperature | -15~65℃ |
Product Features
Product Features
Order Information
Order Information
| Product | Dissolved oxygen sensor |
| Model | SUP-DO7012 |
| Measure range | 0-20mg/L,0-20ppm,0-45deg C |
| Accuracy | Resolution:±3%, Temperature: ±0.5℃ |
| Pressure range | ≤0.3Mpa |
| Power supply | 12 VDC |
| Main material | SUS316L+PVC (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| O-ring: Fluoro-rubber; Cable: PVC | |
| Cable length | Standard 10-Meter Cable, Max : 100m |
| Display | 128 * 64 dot matrix LCD with LED backlight |
| Power supply | 12 VDC |
| Calibration | Automatic air calibration,Sample calibration |
| Storage Temperature | -15~65℃ |
Installation
Communication Protocol
| MODBUS-RTU | |
| Baud Rate | 4800/9600/19200/38400/57600 |
| Data Bits | 8 bit |
| Parity Check | no |
| Stop Bit | 1bit |
| Register Name | Address Location | Data Type | Length | Read/Write | Description |
| Dissolved Oxygen Value | 0 | F(Float) | 2 | R(only read) | |
| Dissolved Oxygen Concentration | 2 | F | 2 | R | |
| Temperature | 4 | F | 2 | R | |
| Slope | 6 | F | 2 | W/R | Range:0.5-1.5 |
| Deviation Value | 8 | F | 2 | W/R | Range:-20-20 |
| Salinity | 10 | F | 2 | W/R | |
| Atmospheric Pressure | 12 | F | 2 | W/R | |
| Baud Rate | 16 | F | 2 | R | |
| Slave Address | 18 | F | 2 | R | Range: 1-254 |
| Response Time of Read | 20 | F | 2 | R | |
| Modift Baud Rate | 16 | Signed | 1 | W | |
| Modify Slave Address | 17 | Signed | 1 | W | Range: 1-254 |
| Modify Response Time | 30 | Signed | 1 | W | 6-60s |
