Overview
Overview

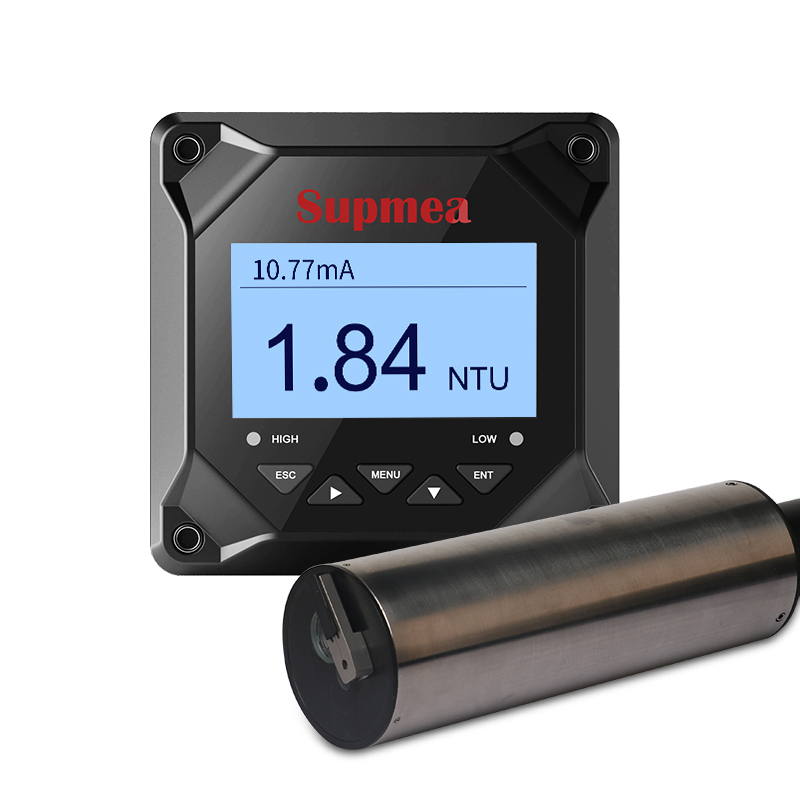

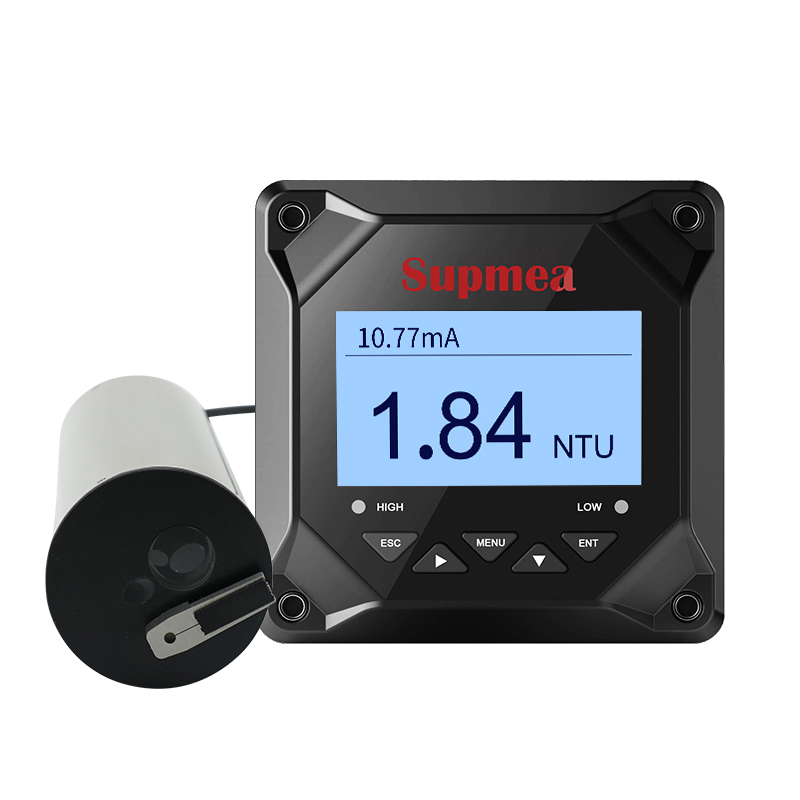

| Product | Turbidity meter |
| Model | SUP-PTU100 |
| Measure range | 0.00 ~ 4000NTU |
| Indication resolution | Less than ± 2% of the measured value, |
| or ± 0.1 NTU Maximax criterion | |
| Pressure range | ≤0.4MPa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage Temperature | -15~65℃ |
| Environment temp | 0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover: PVC; Cable: PVC | |
| Ingress protection | IP68(sensor) |
| Power Supply | AC220V±10%,5W Max,50Hz/60Hz |
Product Features
Product Features
Application
Application
Description
Description
Product dimension
Product dimension
Order Information
Order Information
| Product | Turbidity meter |
| Model | SUP-PTU100 |
| Measure range | 0.00 ~ 4000NTU |
| Indication resolution | Less than ± 2% of the measured value, |
| or ± 0.1 NTU Maximax criterion | |
| Pressure range | ≤0.4MPa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage Temperature | -15~65℃ |
| Environment temp | 0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Main materials | Main Body:SUS316L (Ordinary Version), |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover: PVC; Cable: PVC | |
| Ingress protection | IP68(sensor) |
| Power Supply | AC220V±10%,5W Max,50Hz/60Hz |
Installation
Installation
