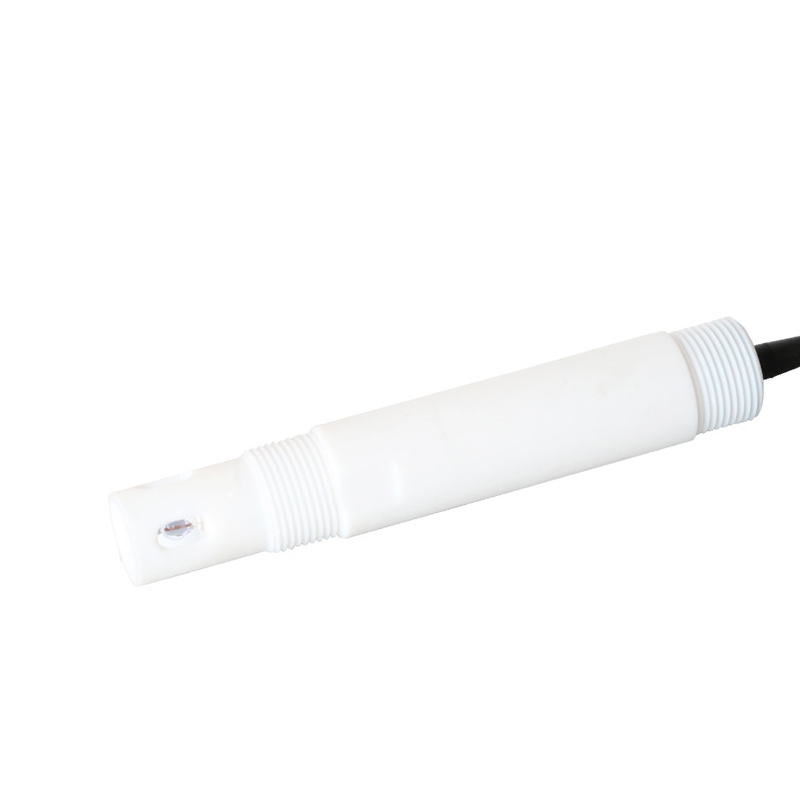

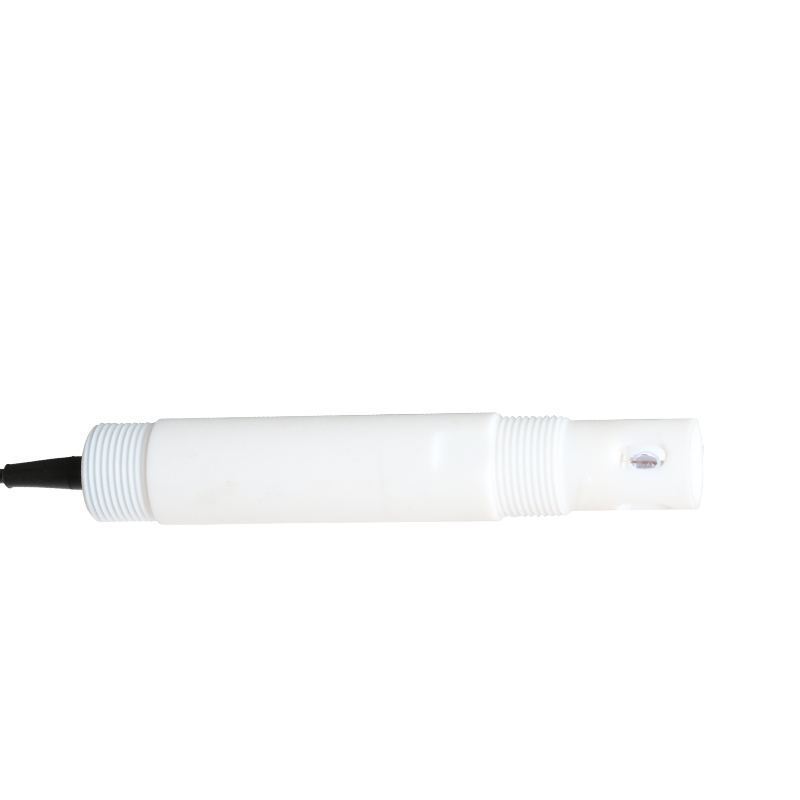

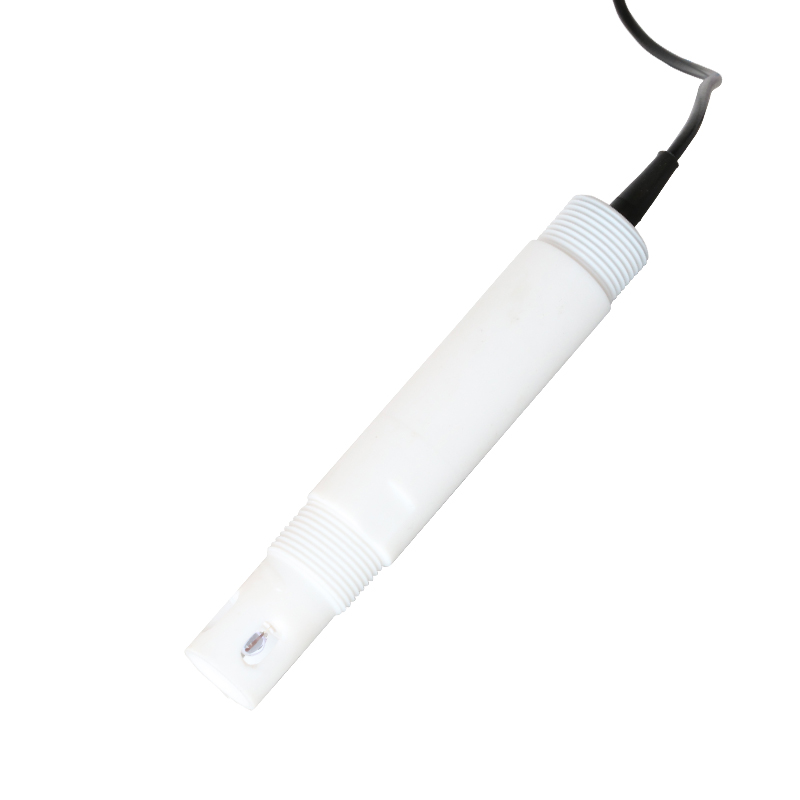

Product | PTFE pH sensor |
Model | SUP-PH5013A |
Measurement range | 0 ~ 14 pH |
Zero potential point | 7 ± 0.5 pH |
Slope | > 95% |
Internal impedance | 150-250 MΩ(25℃) |
Practical response time | < 1 min |
Installation size | Upper and Lower 3/4NPT Pipe Thread |
Temp compensation | NTC 10 KΩ/Pt1000 |
Heat resistance | 0 ~ 60℃ for general cables |
Pressure resistance | 4 bar at 25 ℃ |
Connection | Low-noise cable |
Introduction
Introduction
Product advantages
Product advantages
1.Adopt international advanced solid dielectric and large area PTFE liquid junction, no clogging, easy maintenance.
2.Long distance reference diffusion path, extends electrode life greatly in harsh environments.
Using PPS / PC shell, Up and down 3/4NPT pipe thread, easy installation, no need sheath, saving installation costs.
3.Electrode is made of high quality low-noise cable, make signal output length greater than 40 meters or more, without interference.
4.No supplemental dielectric, a little maintenance.
5.High accuracy, fast response, good repeatability.
6.With silver ions Ag / AgCL reference electrode.
7.Proper operation to extend service life
8.Side or vertically installation to the reaction tank or pipe.
9.Four-fluorine material shell suitable for corrosive liquid testing.
