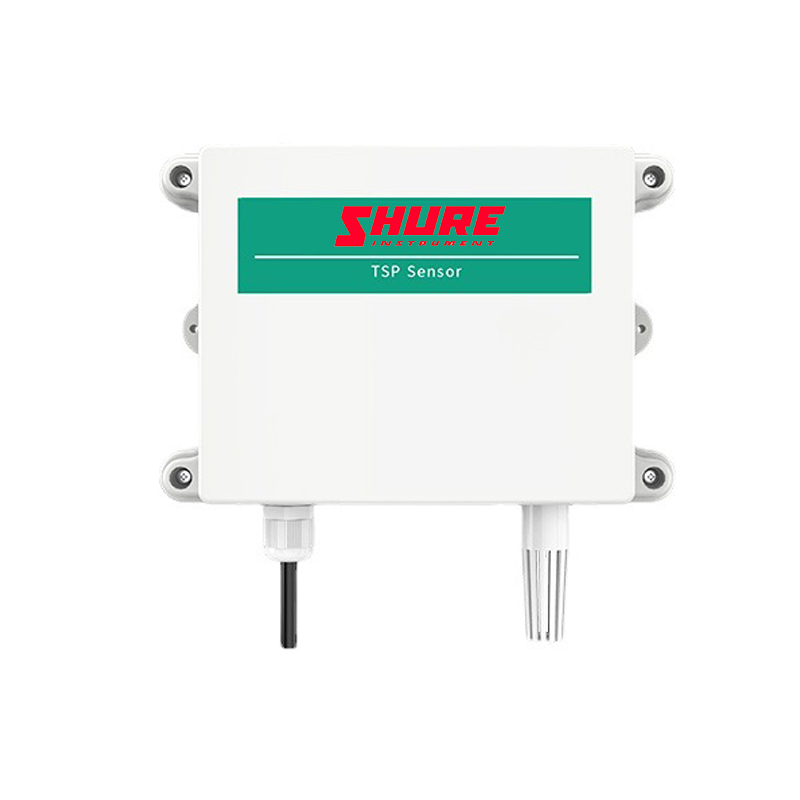

“SHURE” TSP total dust concentration particle wireless sensor PM100 dust monitoring transmitter

Product name: “SHURE” TSP total dust concentration particle wireless sensor PM100 dust monitoring transmitter
DC power supply (default): 10~30V DC
Power Consumption: 0.5W
Transmitter circuit operating temperature and humidity: -20°C~+60°C, 0%RH~95%RH non-condensing
485 communication (ModBus) protocol
The default communication baud rate is 4800
Data bit length: 8 bits
Parity mode: none
Stop bit length: 1 bit
Default ModBus communication address: 1
Parameter setting: use the provided configuration software to configure through the 485 interface
Resolution: lug/m³
Accuracy: ±20% or ±30ug/m², whichever is greater (@1000ug/m³, 25°C, 50%RH)
Measuring range: 0-20000ug/m³
Response speed: ≤6s
Preheating time: ≤2min
Installation method: wall-mounted
