Type : Three valve manifold ( Three way manifold)
Connection : ¼” , ½”, ¾”, 1” NPT – Male or Female
Body material : ss304 , ss316 , ss316L , Carbon Steel
Pressure rating : up to 6000 Psi

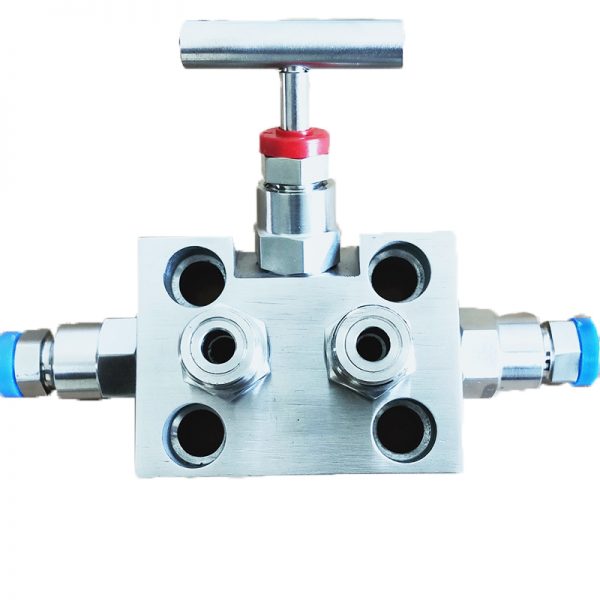

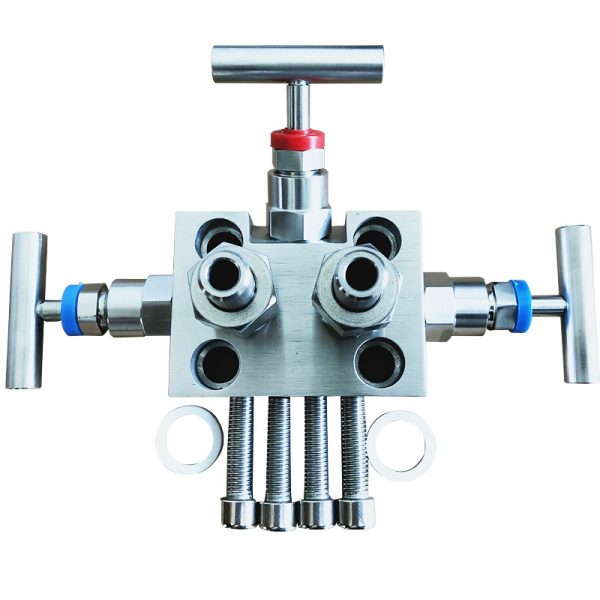

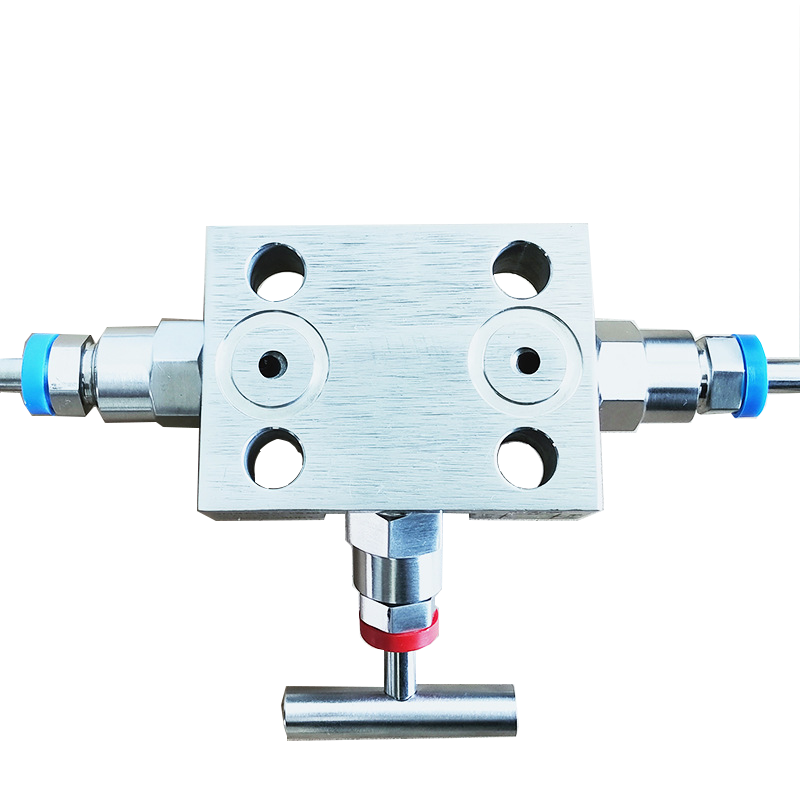

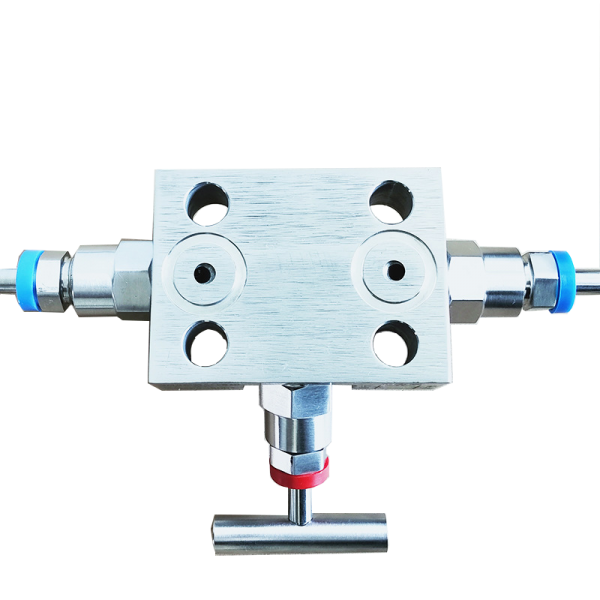

“SHURE” three valve manifold is a device that is used to ensure that the capsule will not be over-ranged. It also allows isolation of the transmitter from the process loop. It consists of two block valves high pressure and low pressure block valve and an equalizing valve. Two block valves provide instrument isolation, and one equalize valve is positioned between the high and low transmitter process connections to provide equal pressures on both sides.
