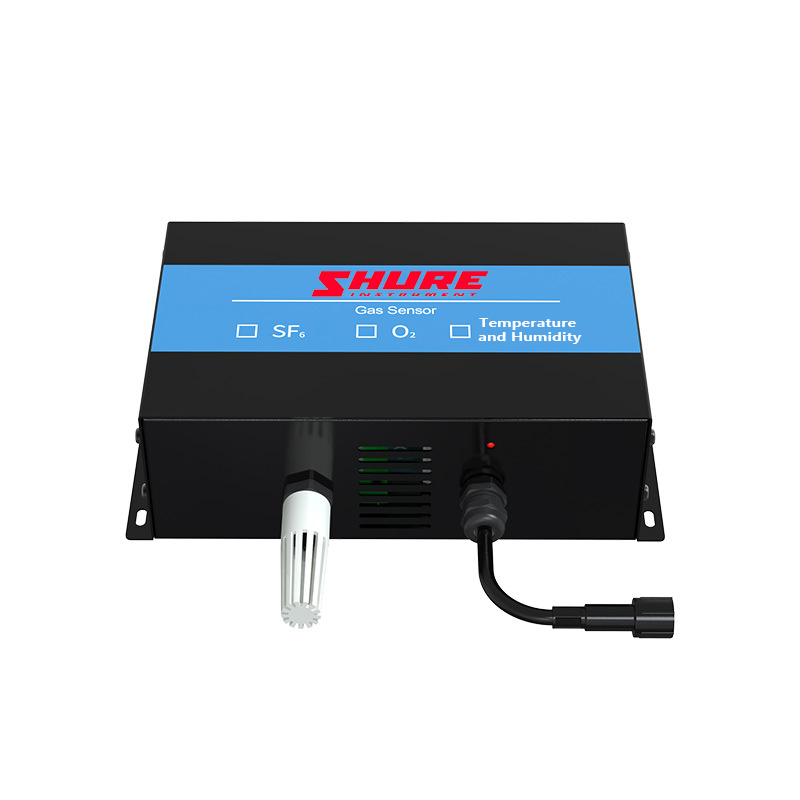

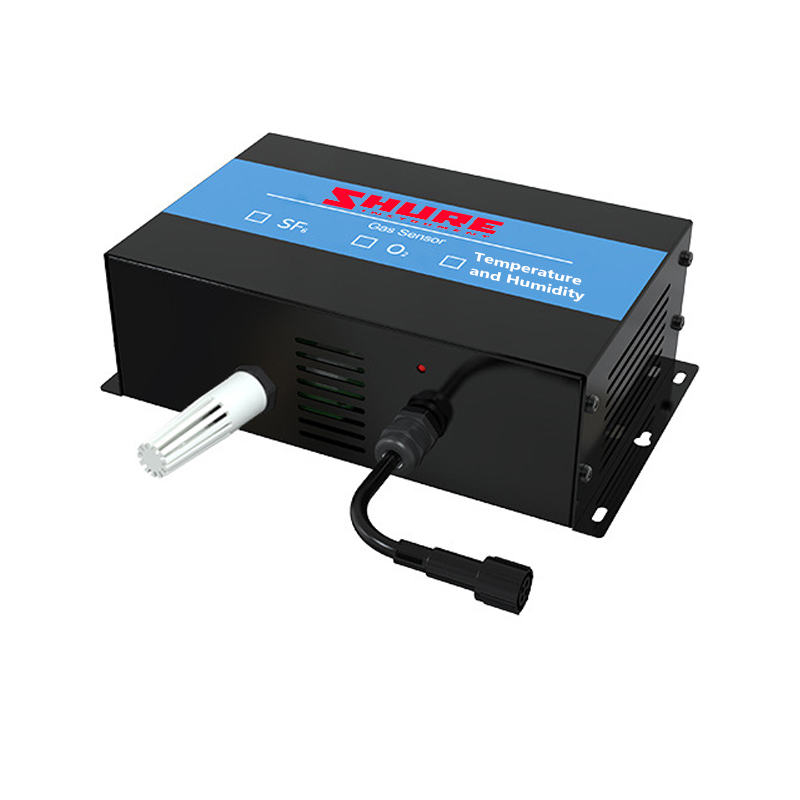

Product name: “SHURE” Sulfur hexafluoride oxygen sensor detector and temperature humidity four-in-one sensor SF6 gas concentration monitor gas detector
Item: Technical Indicators
SF6 resolution: 1ppm
SF6 maximum allowable error: ±10% (@500ppm, 60%RH, 25℃)
SF6 measuring range: 0~1000ppm
SF6 zero drift: ±3ppm
SF6 stability: ≤2% signal value/month
SF6 response time: ≤30s
SF6 warm-up time: ≥30min
SF6 repeatability: <3%
O2 Resolution: 0.1%VOL
O2 accuracy: ±3%FS
O2 range: 0~30%VOL
O2 service life: 2 years (default) 5 years, 10 years optional
O2 repeatability: <1%
O2 warm-up time: ≥5min
O2 response time: <10s
O2 stability: ≤5% signal value/year
Temperature measurement range: -40°C~+80°C
Temperature Accuracy: ±0.5°C (@25°C)
Humidity measurement range: 0~99%RH
Humidity accuracy: ±3%RH(@60%RH,25℃)
Pressure range: 90~110kPa
Working temperature: -10~60°C
Working humidity: 0~95%RH non-condensing
“SHURE” Sulfur hexafluoride oxygen sensor detector and temperature humidity four-in-one sensor SF6 gas concentration monitor gas detector
Categories: Gas Detector, Temperature and humidity detection
