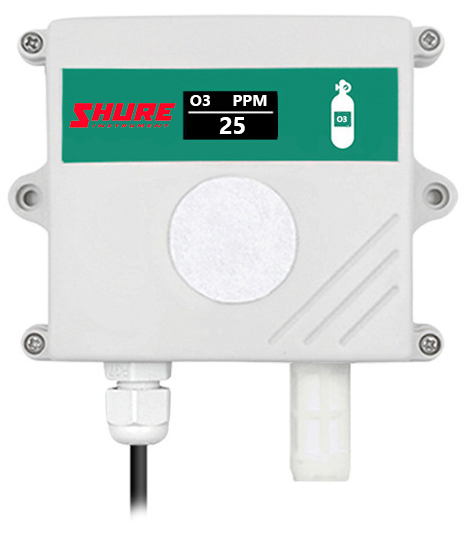

“SHURE” Ozone sensor O3 gas sensor ozone concentration detector ozone transmitter

Product name: “SHURE” Ozone sensor O3 gas sensor ozone concentration detector ozone transmitter
Power supply: 10~30V DC
Output signal: 485|4-20mA|0-5V|0-10V
Average power consumption: RS485: 0.1W Analog: 0.12W
Temperature measurement range: -40°C~+80°C
Temperature Accuracy: +0.5°C (25°C)
Humidity measurement range: O~100%RH
Humidity accuracy: ±3%RH(60%,25℃)
Working temperature: -10°C~+55°C
Working humidity: 15%RH~90%RH
Working pressure: 91-111KPa
Stability: ≤7% signal value/year
Response time: ≤35s
Repeatability: ≤2% output value
Accuracy: 0-10ppm: ±6%FS (@5ppm, 25°C, 50%RH), 0-100ppm: ±6%FS (@50ppm, 25°C, 50%RH)
Resolution: 0-10ppm: 0.01ppm, 0-100ppm: 0.1ppm
Preheating time: ≥5min
Zero drift: range 0~10ppm: ≤±1ppm, range 0~100ppm: ≤±5ppm
