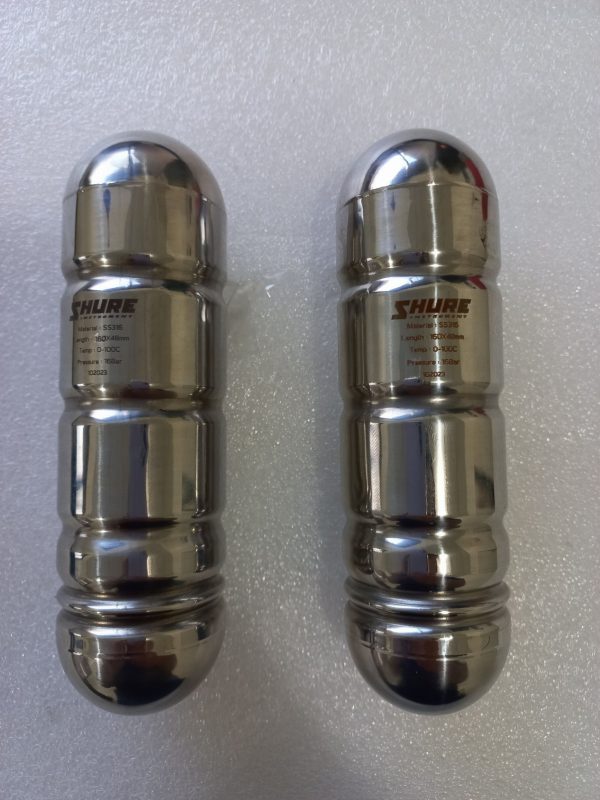

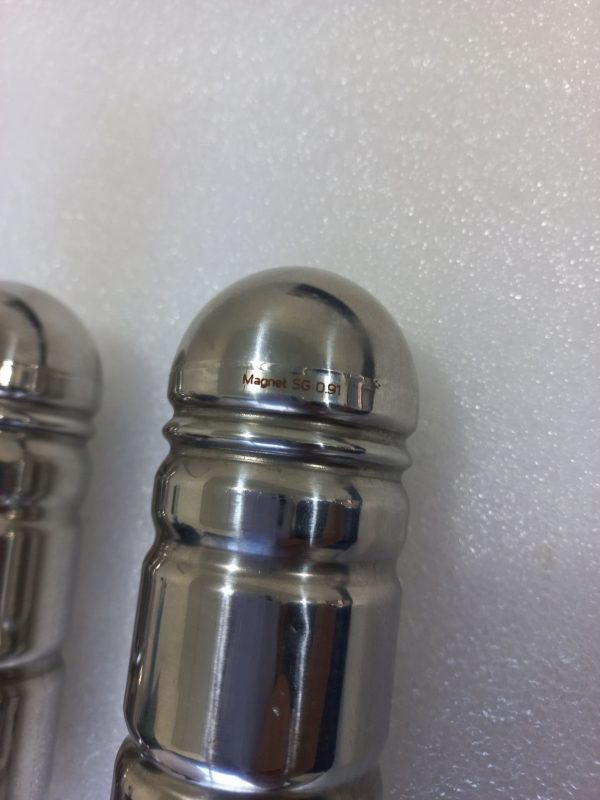

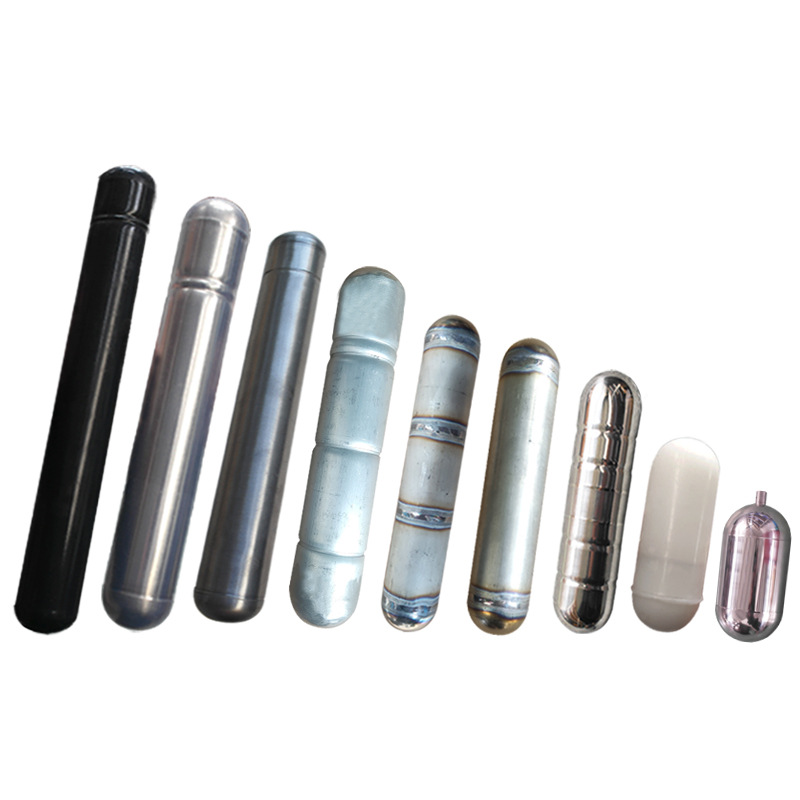

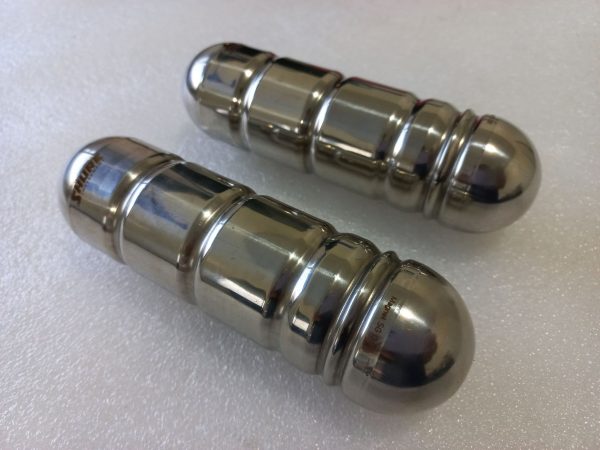

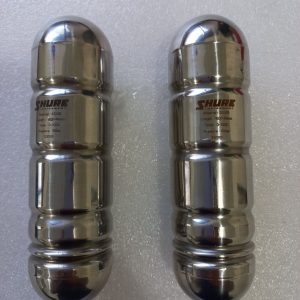

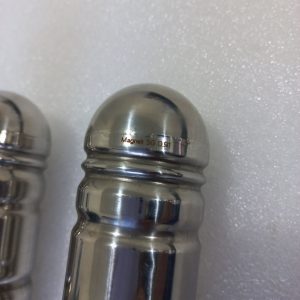

Product name : “SHURE” Magnetic level gauge float sensor
Side mounted magnetic flap inner float
Outer diameter : 32 38 40 42 45 48 50 54 60
Material : 304 316 stainless steel PP PVC titanium lined with PTFE aluminum
Temperature resistance : ≤350℃
Pressure resistance : ≤32MPA
Diameter : 38mm, 45mm, others
Pressure range : ≥0.5g/cm²
Measurement accuracy : ±10nm
Float Material : 304 316 Lining Teflon Aluminum Alloy Titanium PP
Float on top mounted magnetic flap
Outer diameter : 32 38 40 42 45 48 50 54 60
Material : 304 316 stainless steel PP PVC iron lined with PTFE aluminum
Temperature resistance : ≤350℃
Pressure resistance : ≤1.6 MPA
Diameter : 38mm, 45mm, others
Pressure range : ≥0.5g/cm²
Measurement accuracy : ±10mm
Float material : 304 316 lined tetrafluoroaluminum alloy titanium PP
Top mounted magnetic flap lower float
Outer diameter : 38 42 45 48 50 57 60 64 75 80 89 90 100 120 127 157
Material : 304 316 stainless steel PP PVC titanium lined with PTFE aluminum
Temperature resistance : ≤350℃
Pressure resistance : ≤1.6MPA
Diameter : 38mm 45mm, other
Pressure range : 10.5g/cm²
Measurement featured : ±10mm
Float material : 304 316 lined with tetrafluoroaluminum alloy PP
