Technical Parameters | |
Pressure range | |
: (0~260)MPa | |
Stability | |
: better than 0.1%F·S | |
Output port | |
: 3 | |
Pressure connection | |
: quick connect thread (M20*1.5) | |
Ambient temperature | |
: -10~60℃ | |
Working medium | |
: transformer oil | |
Overall dimensions | |
: 500*410**190mm | |
Weight | |
: 13.8kg |

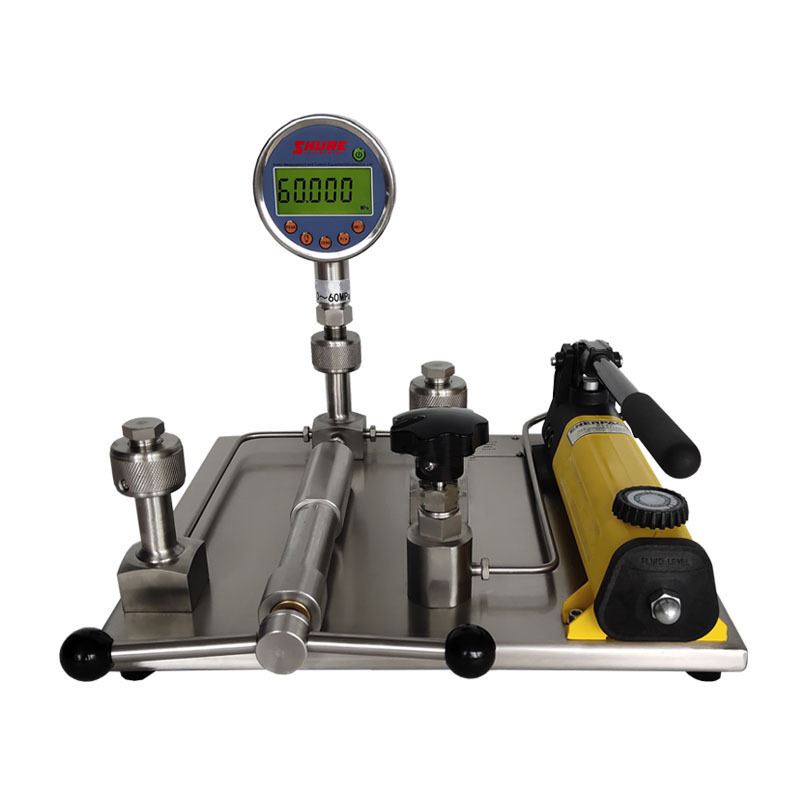

The liquid pressure calibration bench consists of a pressure rod, a pressure
regulating valve, a return check valve, a stop valve and a pressure output connector.
Composed of ports, it is simple to operate, easy to maintain, has good sealing
performance, stable pressure reduction, and pressure increase
With the advantages of fast speed and labor saving, it is an ideal replacement product
for piston pressure source.
