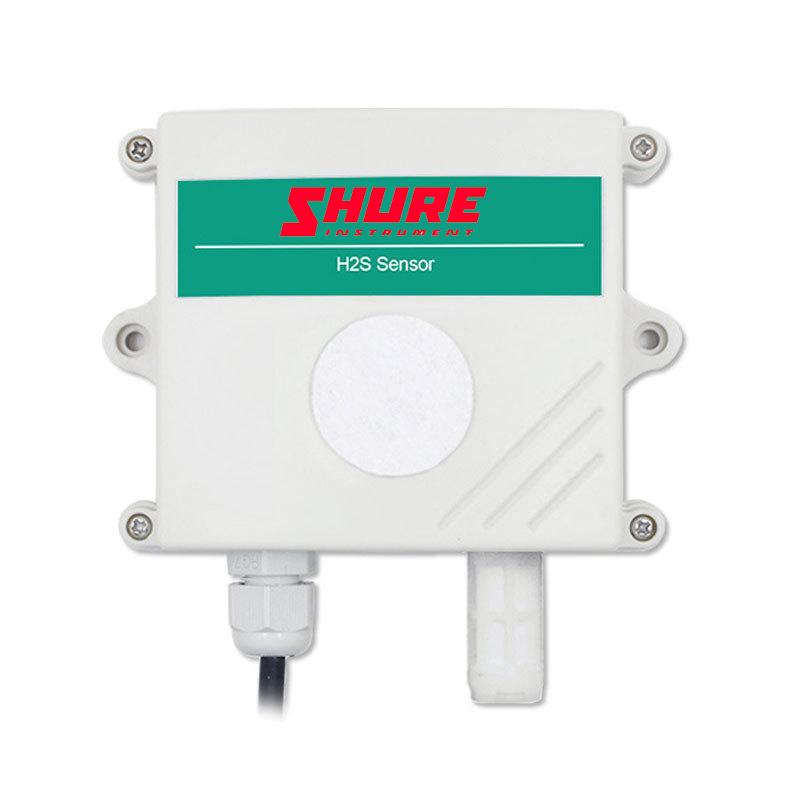

Product name: “SHURE” H2S hydrogen sulfide sensor industrial pollution gas concentration monitoring hydrogen sulfide detector transmitter
Power supply: 10~30V DC (0~10V output type can only be powered by 24V)
Output signal: RS485, 4-20mA, 0-5V, 0-10V
Power consumption: RS485: 0.12W, 4-20mA, 0-5V, 0-10V: 0.25W
Working temperature: -20~50°C
Working humidity: 15~90%RH non-condensing
Pressure range: 90~110kPa
Stability: ≤2% signal value/month
Working temperature: -20~50°C
Working humidity: 15~90%RH non-condensing
Pressure range: 90~110kPa
Stability: ≤2% signal value/month
Hydrogen sulfide zero drift (-20~40℃): ±5ppm
Repeatability: <2%
Service life: ≥24 months
Range: 0~ 100ppm
Accuracy: ±3%FS
Resolution: 1ppm
Response time: ≤35s
Preheating time: ≥5min
“SHURE” H2S hydrogen sulfide sensor industrial pollution gas concentration monitoring hydrogen sulfide detector transmitter
