Technical Parameters | |
Accuracy | |
: 1%,1.6%,2.5% | |
Range | |
: 0~40MPa(60mm),0~200MPa(100mm/150mm), 0~100MPa(100mm bottom with fange) | |
Unit | |
: MPa,bar,psi,kpa,kgf/cm2 | |
Material | |
: Brass, 304SS, 361SS | |
Dia | |
: 60mm – 150mm | |
Temperature | |
: -40~200℃,-40~70℃(Liquid Filled) | |
Theard | |
: NPT,BSP(G),BSPT(ZG)- 1/8,1/4,3/8,1/2,M10*1, M14*1.5,M20*1.5 | |
Connection | |
: bottom,back |

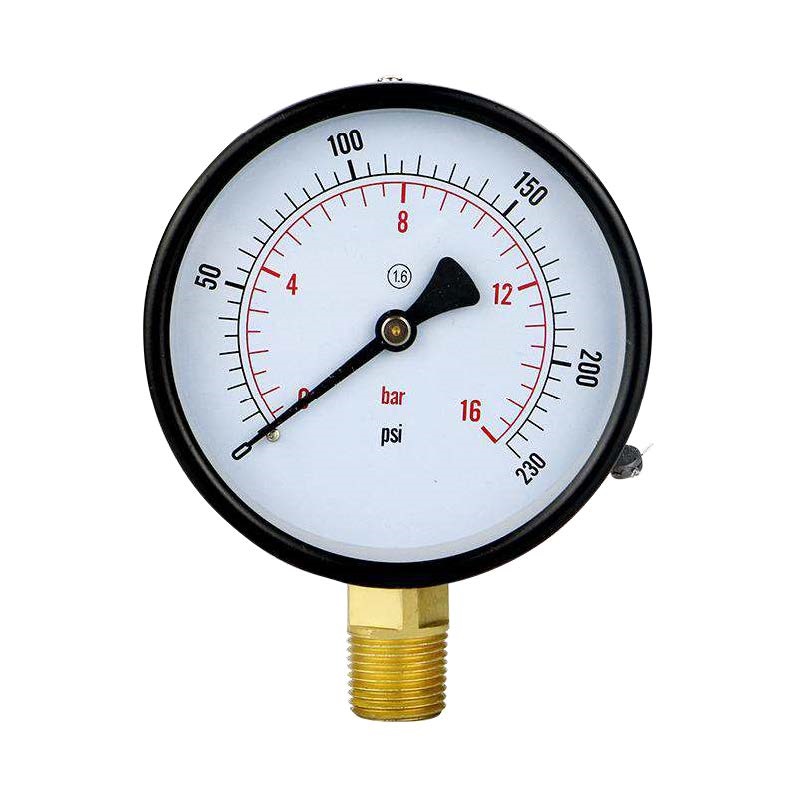

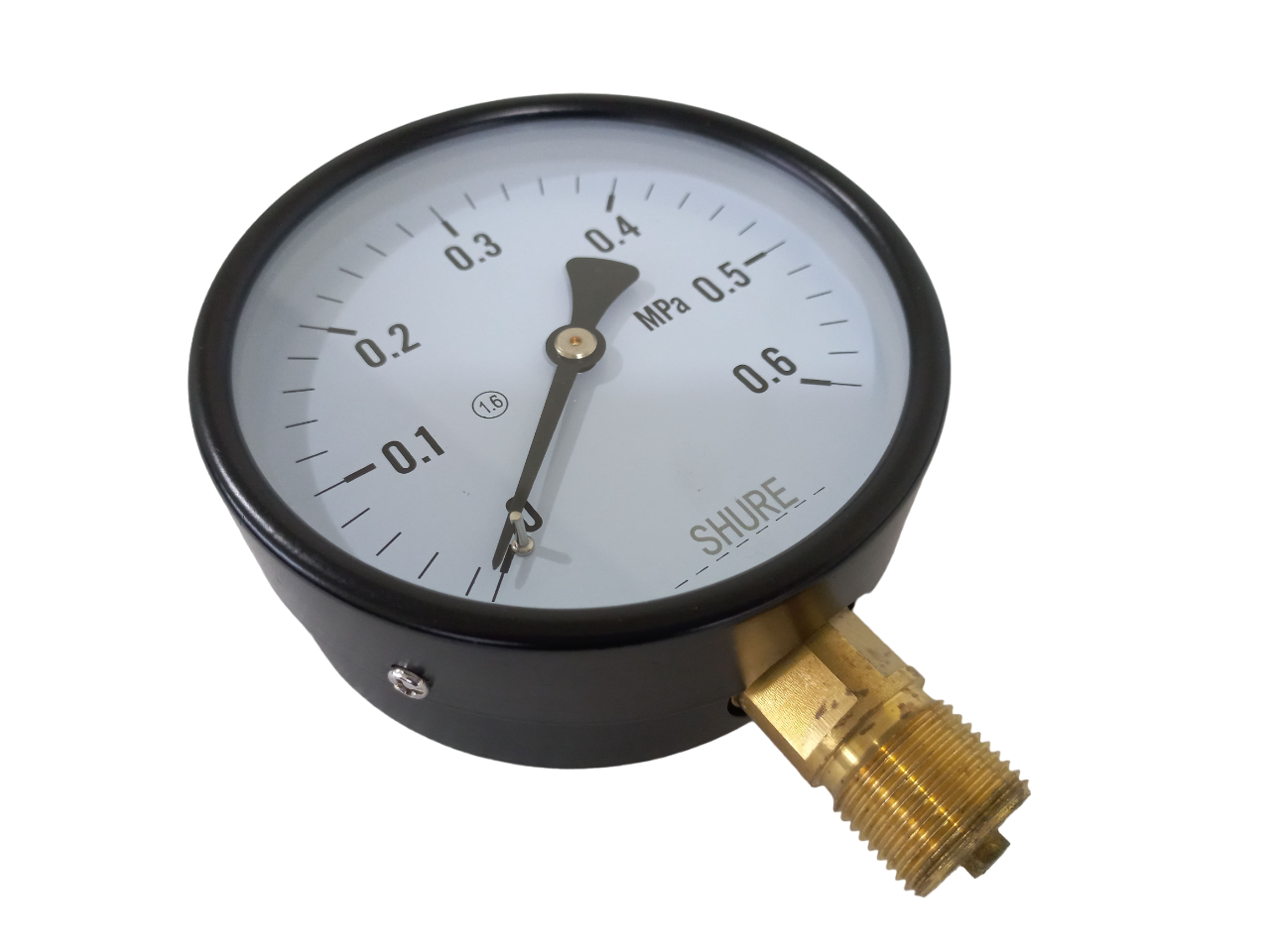

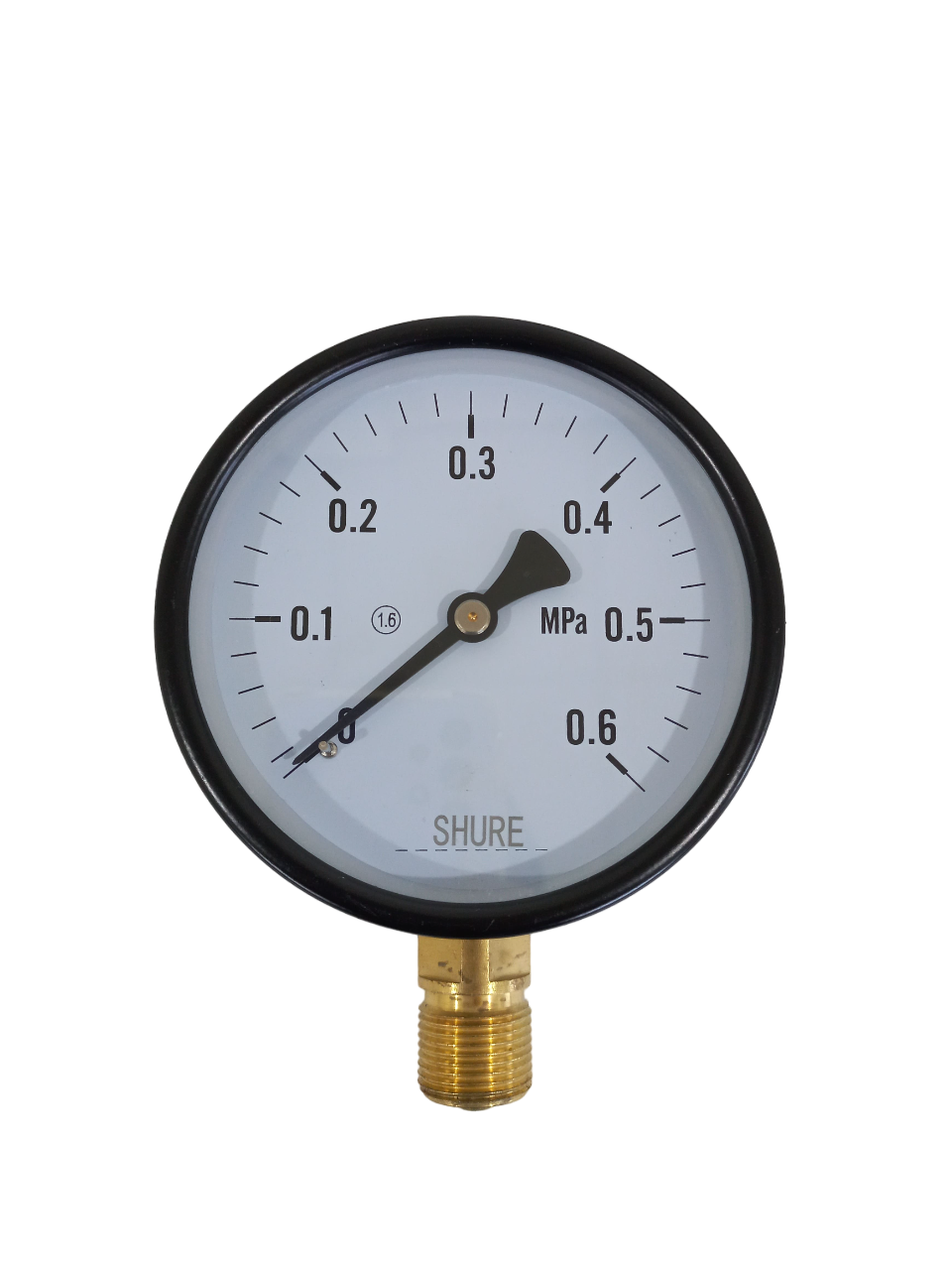

Used to measure the pressure or negative pressure of liquids,
vapors and gases that do not corrode lead and steel alloys.
Categories: Pressure Measurement, Pressure Gauge
