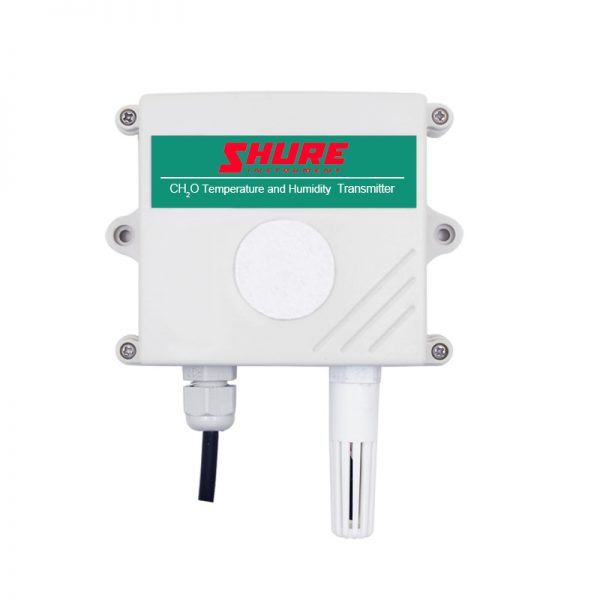

Product name: “SHURE” Formaldehyde gas sensor CH2O concentration detector transmitter
Power supply: 10-30V DC
Temperature measurement range: -40℃~80℃
Humidity measurement range: 0-100%RH
Accuracy: +5%FS (@1ppm, 25°C, 50%RH)
Pressure range: 91-110kPa
Working temperature: -20°C~50°C
Working humidity: 15%RH-90%RH
Humidity accuracy: ±3%RH (60%RH, 25°C)
Temperature Accuracy: ±0.5°C (25°C)
Response time: <35s
Power Consumption: 0.12W
Resolution: 0.01ppm
Stability: ≤7% signal value/year
Output signal: RS485|4-20mA|0-5V|0-10V
Zero drift: (-20~40°C) ≤±0.5ppm
Preheating time: ≥5min
Repeatability: <2%
“SHURE” Formaldehyde gas sensor CH2O concentration detector transmitter
