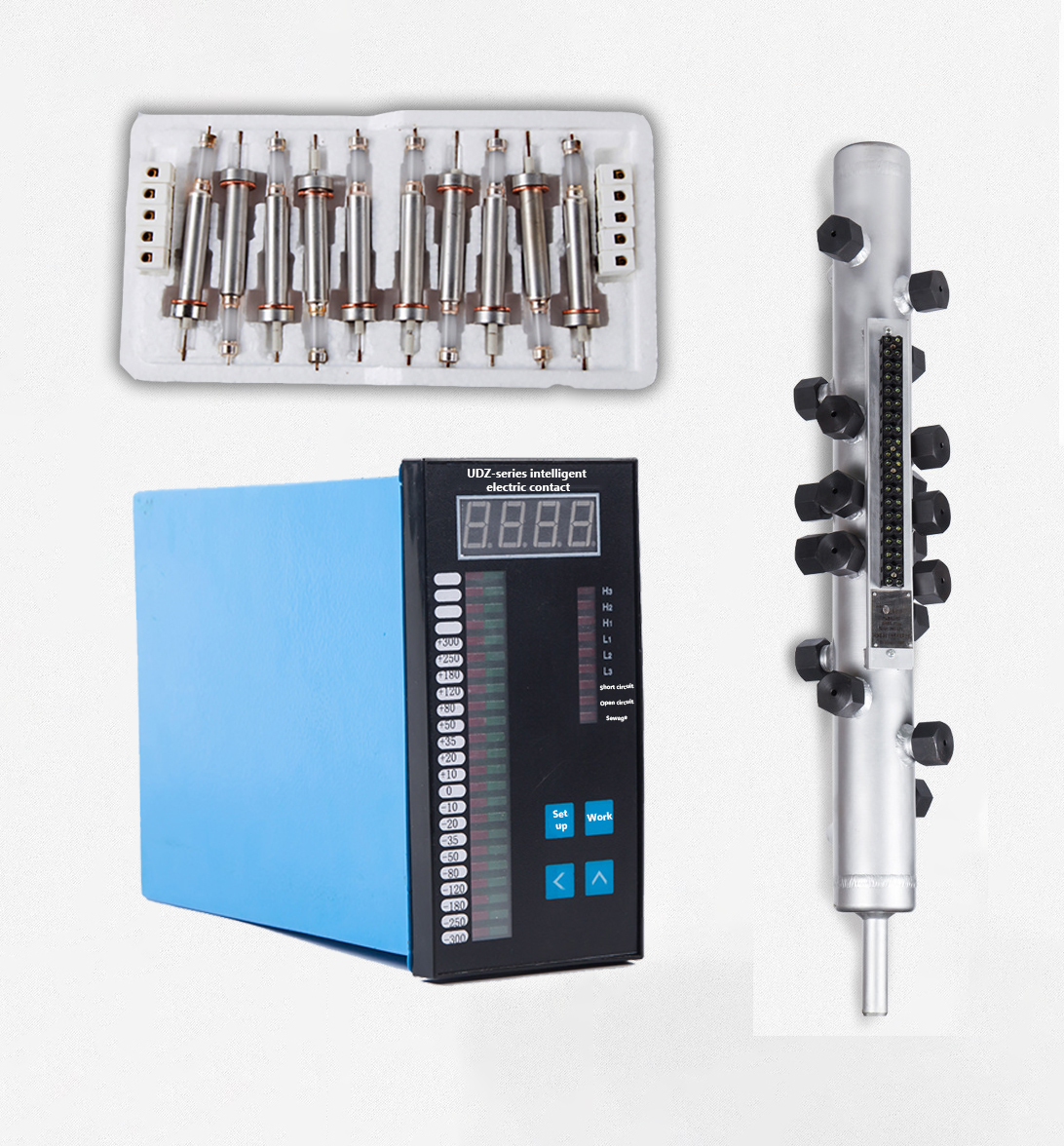

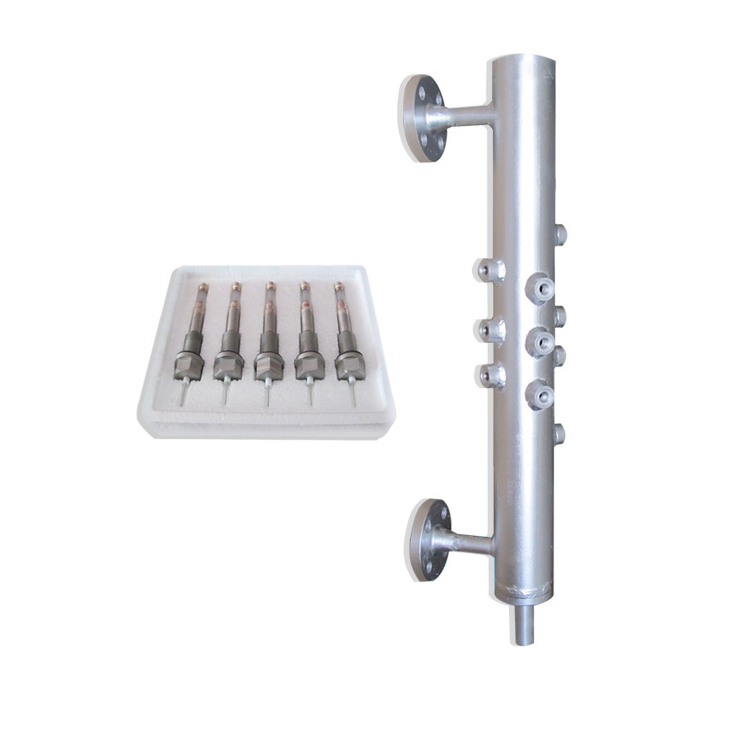

Measuring cylinder technical parameters
Measuring range: 440-800mm (special can be customized)
Working pressure: 2.5MPa, 4.0MPa, 6.4MPa, 10.0MPa, 16.0MPa, 32.0MPa
Connection size: DN20, DN25, 25*3, 28*4, 32*5
Number of electrodes: ≤32 points
Main material: carbon steel
Secondary instrument parameters
Power supply: AC220VA
Number of control points: ≤32 points
Output signal: 4-20mA
Alarm value: 6 channels can be set at will
Electric shock capacity: AC220V-3A
Instrument power: 20W
Instrument size: 160*80*280
Water level display: digital + light column
Electrode Technical Parameters
Material: ultra-pure aluminum oxide
External thread type: DJM1615-117,
DJM1615-97, DJM1615-87 DJM1815-115, DJM1815-87
Pressure type: DJY2212-115, DJY2212-87, DJY2012-87 DJY1712-115, DJY1712-87
