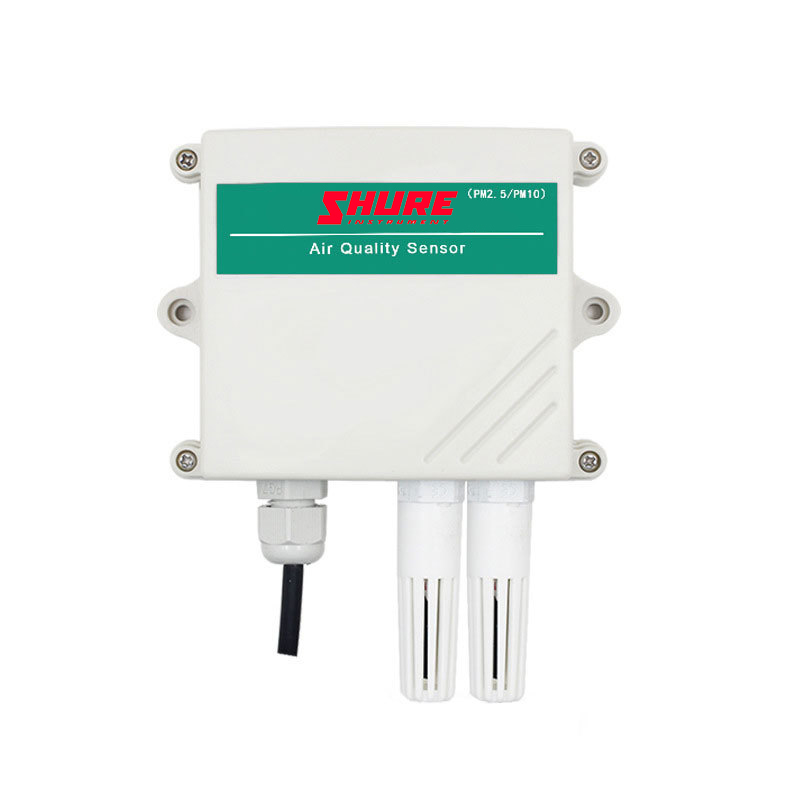

“SHURE” Air quality sensor PM2.5 PM10 detector high-precision industrial-grade air pollution monitoring transmitter

Product name: “SHURE” Air quality sensor PM2.5 PM10 detector high-precision industrial-grade air pollution monitoring transmitter
DC power supply (default): 10~30V DC
Power Consumption: 0.5W
Communication interface: 485 communication (ModBus) protocol
Baud rate: 2400, 4800 (default), 9600
Data bit length: 8 bits
Parity mode: none
Stop bit length: 1 bit
Default ModBus communication address: 1
Parameter setting: use the provided configuration software to configure through the 485 interface
Resolution: PM2.5/PM10/PM1.0, temperature 0.1°C, humidity 0.1%RH
Particle counting efficiency: 50%@0.3um, 98%@>=0.5um.
PM2.5 Accuracy: ±3%FS(@100g/m³, 25℃, 50%RH)
A Accuracy: Humidity: ±2%RH (60%RH, 25°C), Temperature: ±0.4°C (25°C)
B Accuracy (default): Humidity: ±3%RH (60%RH, 25°C), Temperature: ±0.5°C (25°C)
PM2.5, PM10, PM1.1: 0~2000ug/m³
Temperature: -40~+80°C
Humidity: 0%RH-100%RH
Response speed: <90s
Preheating time: ≤2min
Installation method: wall-mounted
