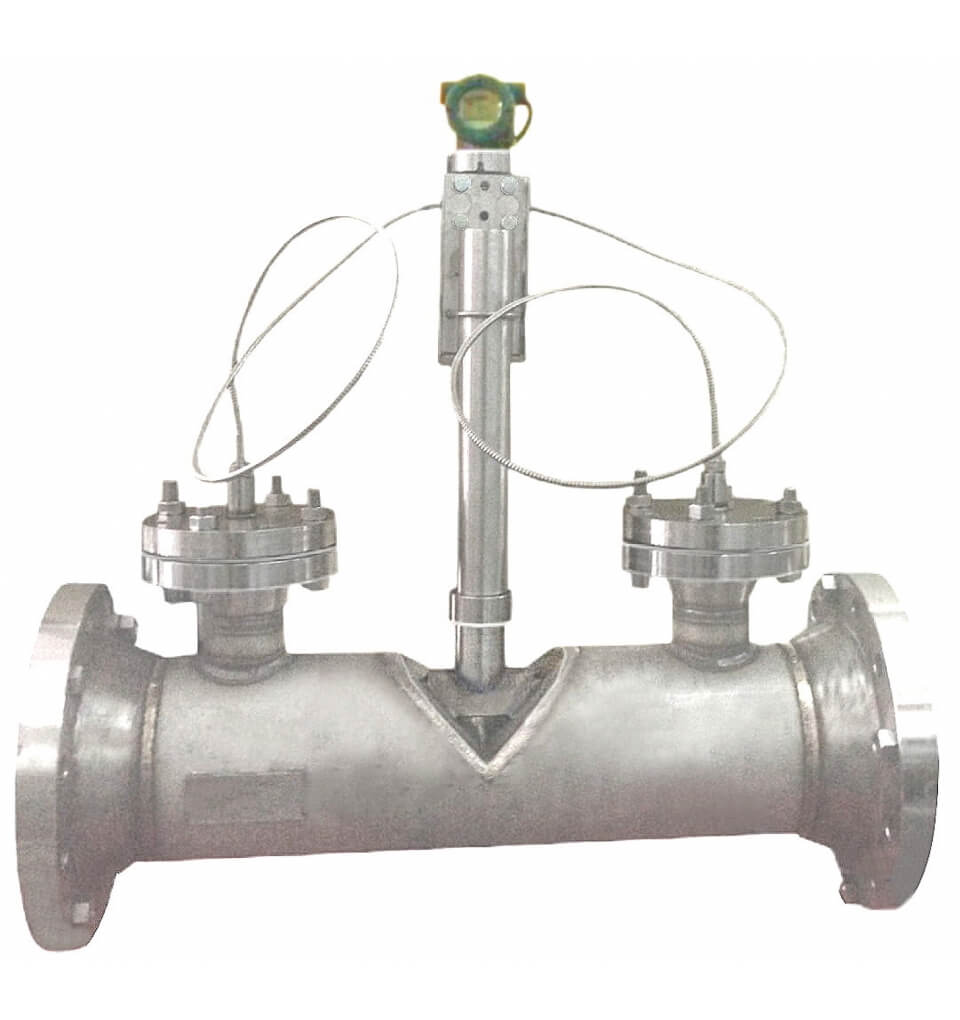

“New-Flow” Wedge Type Flow Element WF_Series

    หมวดหมู่สินค้า

    “New-Flow” Wedge Type Flow Element WF_Series

    Category:

    Technical Data
    Style: Integral or Separate available
    Service: Please refer to the Feature as above
    Material: SS316 standard; option available
    Accuracy: ±0.5% of actual flow rate over calibrated range for 1″-24″
    Repeatability: ±0.2%
    Line Size: Unlimited range, with examples from 1″ to 24″
    End Connection: Flange end, thread end or Weld end available
    Limited Temperature:Integral Style: max. 150°C; Separate Style: max. 370°C
    Limited Pressure:     Integral Style: 100 kg/cm²:Separate Style: 20 kg/cm²
