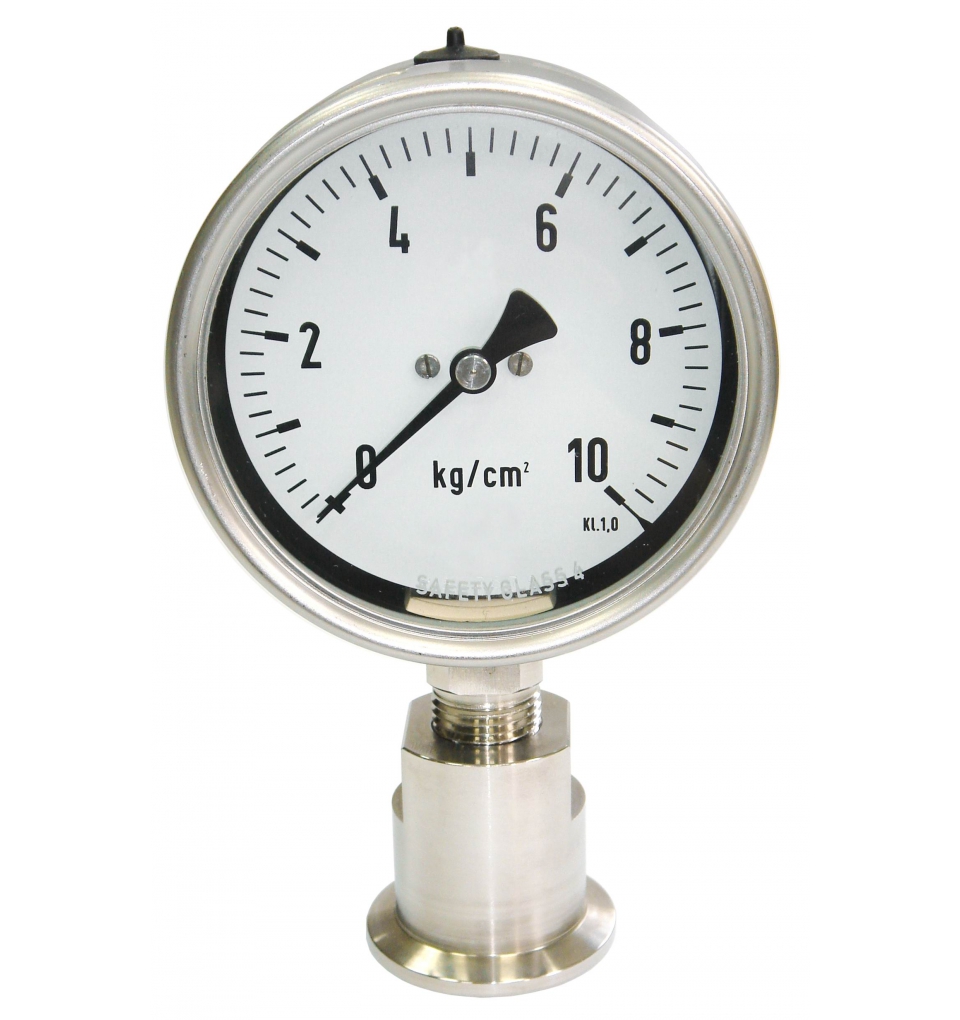

“New-Flow” Diaphragm Seal DT106

Process Connection:

1″, 1½”, 2″ (ISO2852)

25, 32, 40, 50 (DIN32676)

Membrane Size:ø36mm, ø45mm, and ø22mm on special request

Pressure Range Limited:

Maximum 0~40 kg/cm²

Minimum -1~+1.5 kg/cm²

Body Material:SS316

Membrane Material:SS316L, Hastelloy C276, Tantalum
