Product parameters MIK-R200T&MIK-R9600

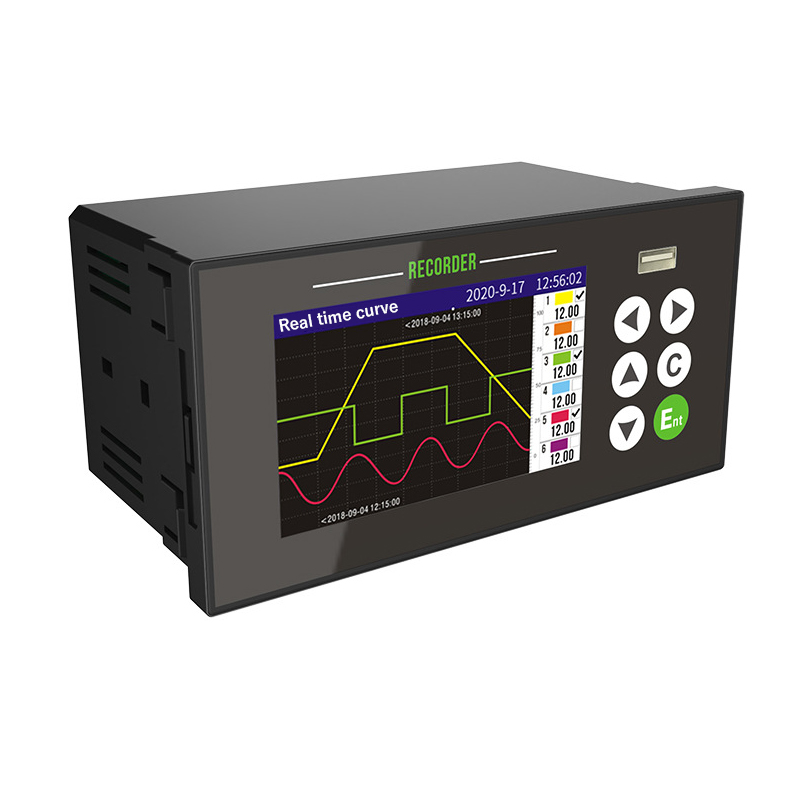

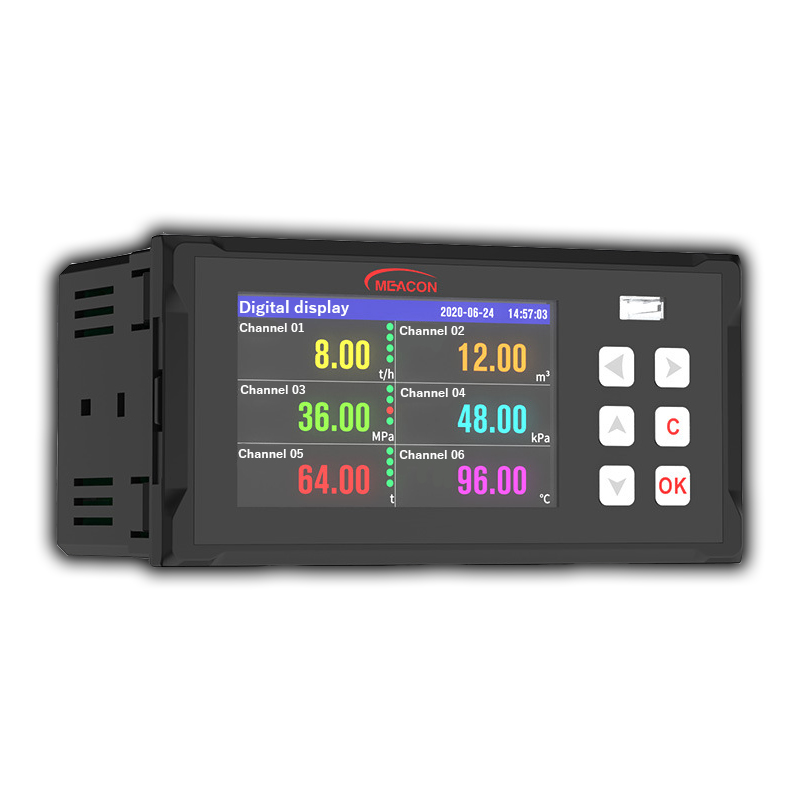

Product number :MIK-R200T
Display method :4 inch color LCD screen
Input signal :
Standard signal: 0-20ma, 4-20ma, 0-5V, 0-10V, 1-5V Millivolt
signal: 0-20mv, -20-20mv, 0-100mv Thermocouple:
S, B, K, T, E , J, R, N thermal resistance:
PT100, Cu50, special can be customized
Output function :24V power distribution output, 6 alarm outputs, 485 communication output
Power supply :100-240VAC 50Hz/24VDC±10%
The sampling period :1 second
recording interval :1 second ~ 60 minutes

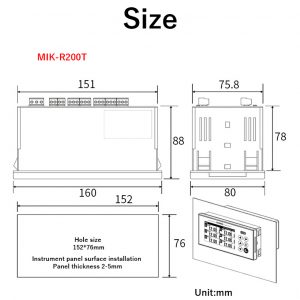

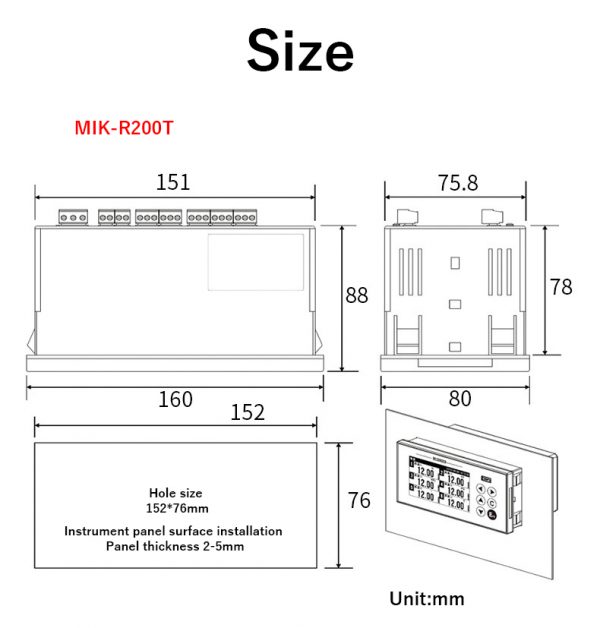

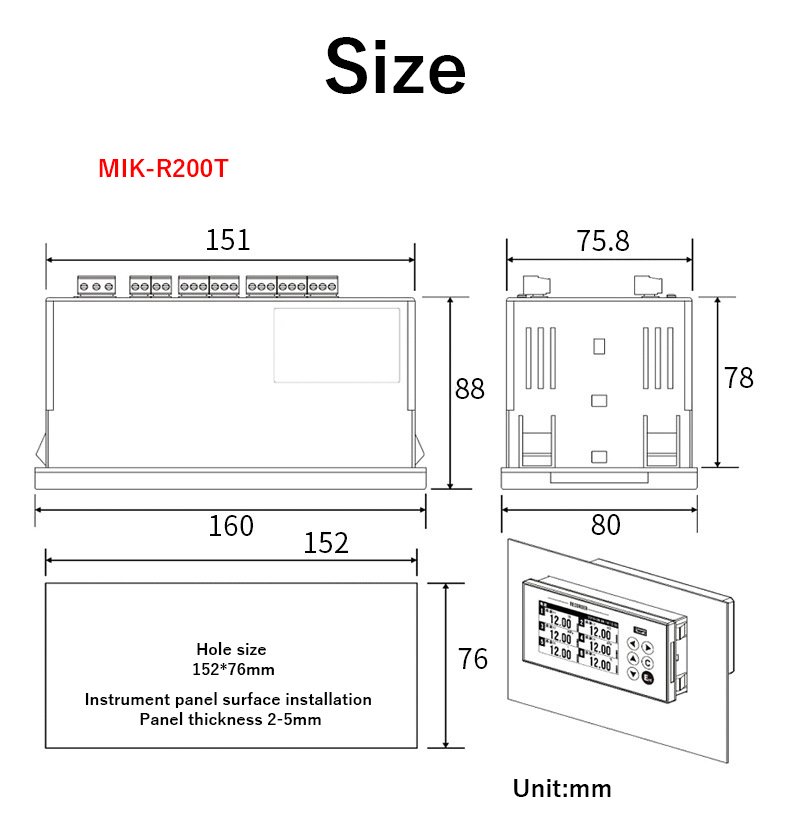

Dimensions :160*80mm
Hole Size :152*76mm

Product name :3.5 inch color screen classic
Product number :MIK-R9600
Display method :3.5-inch LCD display with LED backlight
Input signal :
Standard signal: 0-20ma, 4-20ma, 0-5V, 0-10V, 1-5V
Millivolt signal: 0-20mv, -20-20mv, 0-100mv
Thermocouple: S, B, K, T, E, J, R, N Thermal resistance:
PT100, Cu50, special can be customized
Output function :24V power distribution output, 4 alarm outputs (250V/2A), 485 communication
Power supply :(176-264)VAC,47-63Hz
The sampling period :1 second
Recording interval :1 second – 60 minutes optional

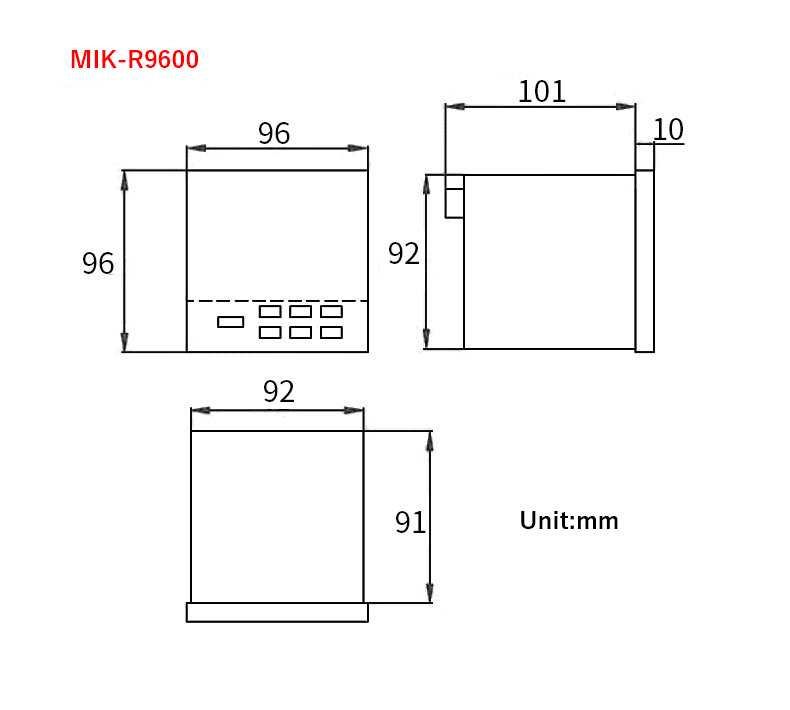

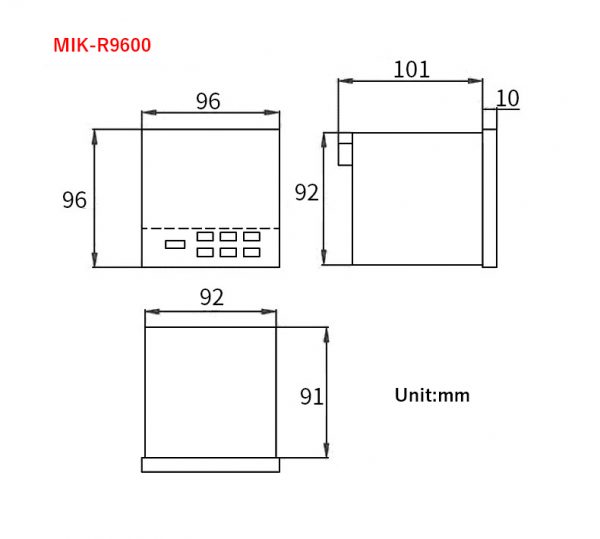

Dimensions :96*96*100
Hole Size :92*92
Weight :0.37kg
