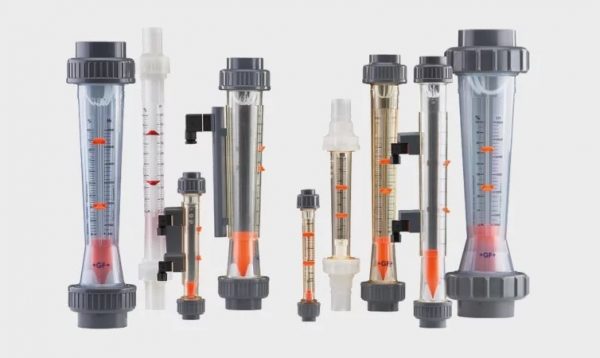

Variable area flow meters from GF Piping Systems are radially installed dismountable meters for flow measuring in industrial piping applications. The measurement ranges, which are attuned to our customers’ needs, and the range of materials available for the tubes and connection ends, mean that the flow meters can be used for a wide range of applications and a great variety of media.

Categories: Flow Measurement, Variable area flow meter (ROTA Meter)

Description

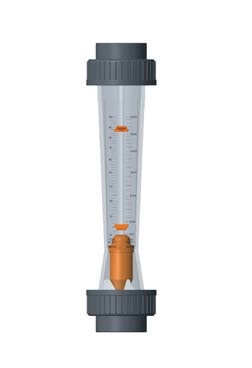

Variable Area Flow Meter Type 335

Variable area flow meter type 335
Float in PVDF without magnet
With solvent cement sockets PVC-U metric
Model:
• Standard guiding rod PVDF with stainless steel core (V4A) for DN50 and DN65
Option:
• 4-20 mA sensor

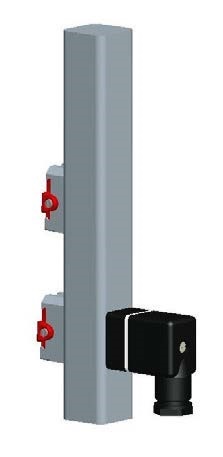

• Limit contacts
• Special scales for different media
• Union nuts and connecting parts in other materials on request

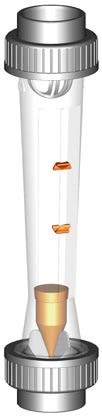

Variable area flow meters
Float in PVDF without magnet
With solvent cement sockets PVC-U BS Inch, ABS metric, PP-H metric
Model:
• Standard guiding rod PVDF with stainless steel core (V4A) for DN50 and DN65 see accessories
for variable area flow meters

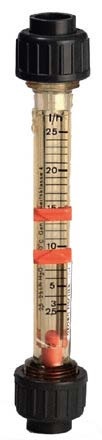

Variable Area Flow Meter Short Version

Short version
Float in PVDF without magnet
With solvent cement sockets PVC-U metric, PVC-U BS Inch, ABS metric, ABS BS Inch
Model:
• Union nuts and valve ends in other materials on request

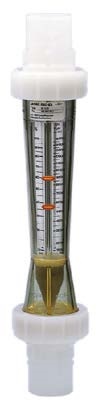

Variable Area Flow Meter Special Version
version Type 335 PVDF-HP
Float in PVDF (white) without magnet
With fusion spigots BCF/IR

version PVDF-HP
Float in PTFE without magnet
With fusion spigots BCF/IR

Short Version with special scale HCl 30 – 33% l/h, NaOH 30% l/h
Float in PVDF without magnet
With solvent cement sockets PVC-U metric
Model:
• Union nuts and valve ends in other materials on request

Accessories
