Overview
Overview
| Product | Industrial conductivity meter |
| Model | SUP-EC8.0 |
| Measure range | 0.00uS/cm～2000mS/cm |
| Accuracy | ±1%FS |
| Measuring medium | Liquid |
| Input Resistance | ≥10~12Ω |
| Temp compensation | Manual/ Auto temperature
compensation |
| Temperature Range | -10-130℃， NTC30K or PT1000 |
| Temperature resolution | 0.1℃ |
| Temperature accuracy | ±0.2℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 500Ω |
| Power supply | 90 to 260 VAC |
| Weight | 0.85Kg |
Product Features
Product Features

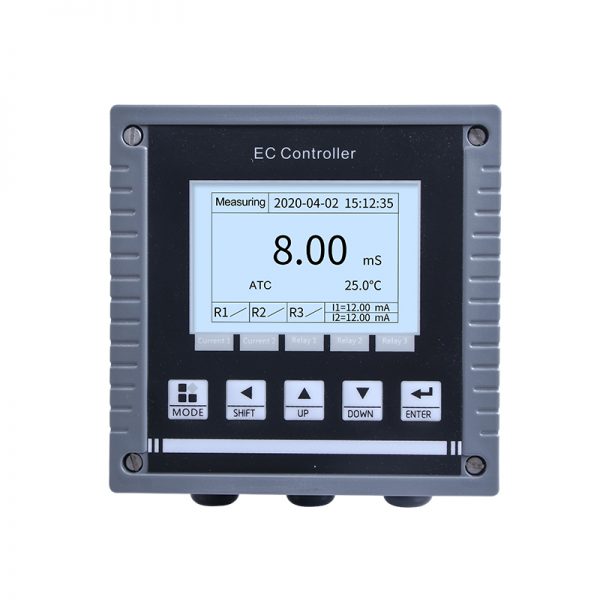

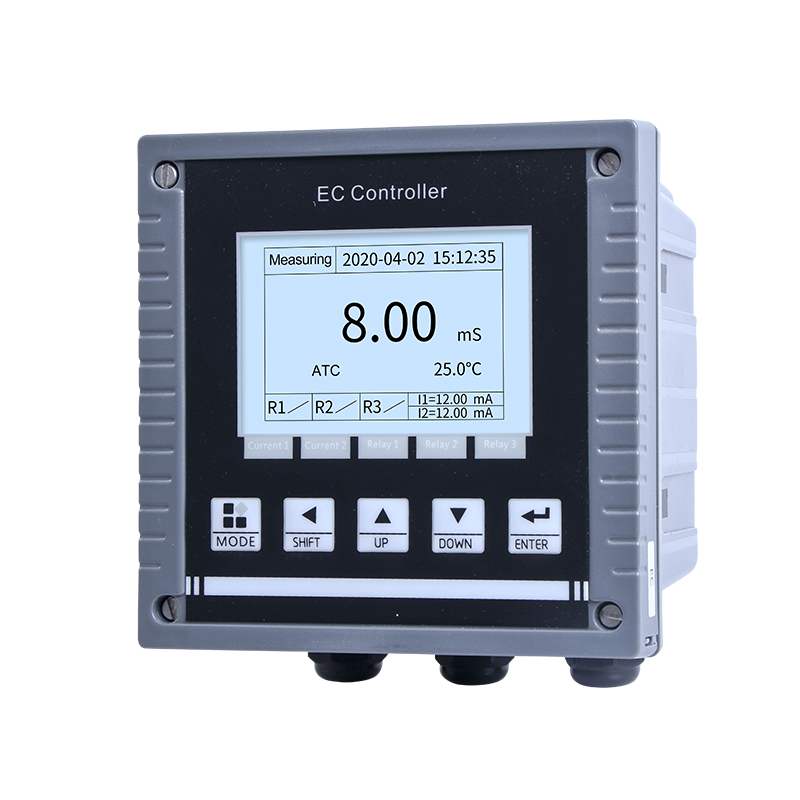

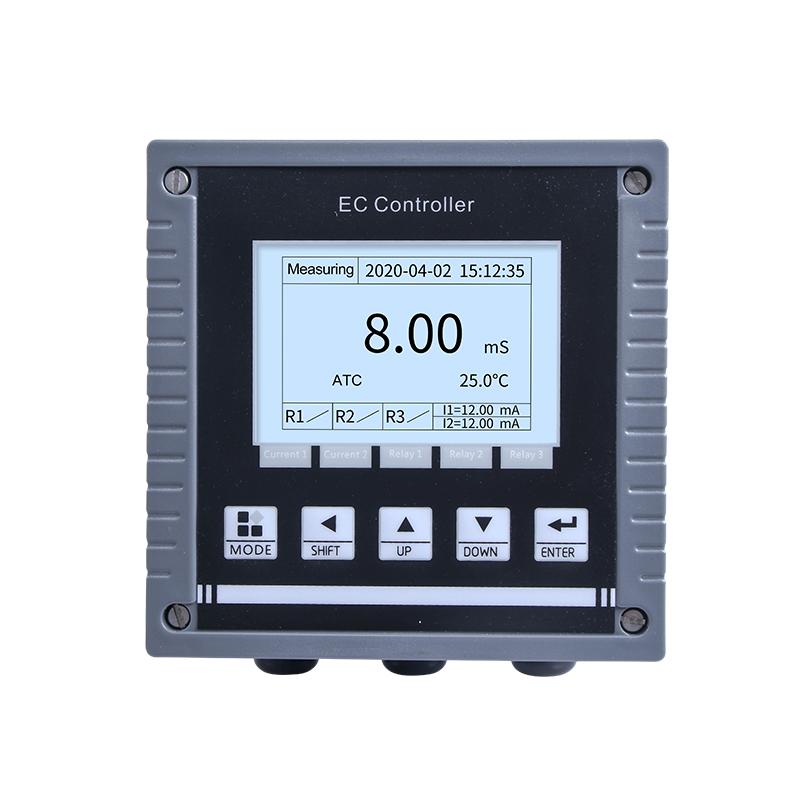

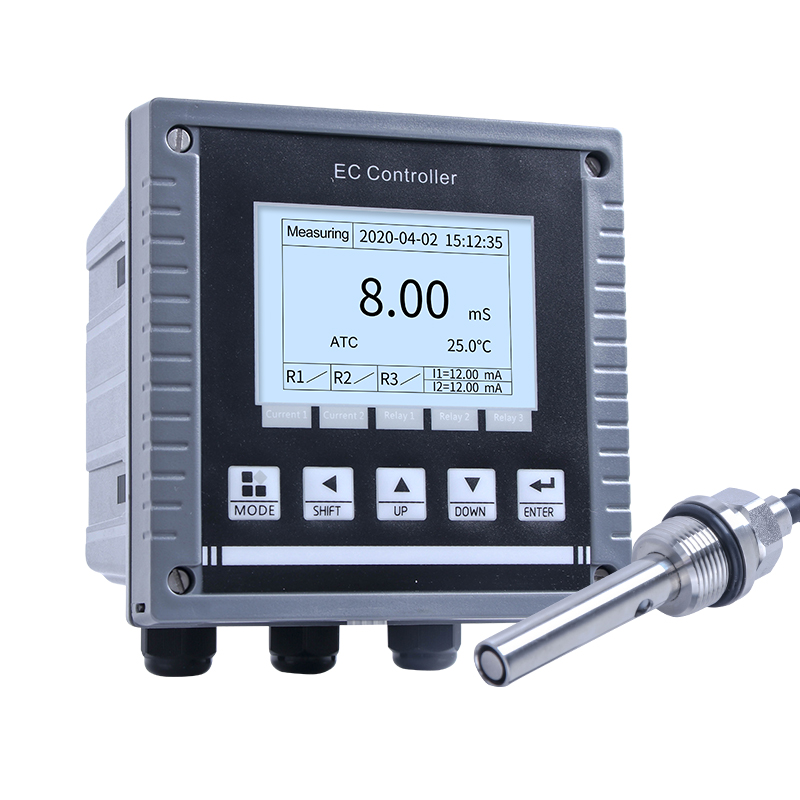

SUP-EC8.0 Industrial conductivity meter is widely applied for continuous monitoring and measurement of EC value or TDS value or EC value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
Order Information
Order Information
| Product | Industrial conductivity meter |
| Model | SUP-EC8.0 |
| Measure range | 0.00uS/cm～2000mS/cm |
| Accuracy | ±1%FS |
| Measuring medium | Liquid |
| Input Resistance | ≥10~12Ω |
| Temp compensation | Manual/ Auto temperature
compensation |
| Temperature Range | -10-130℃， NTC30K or PT1000 |
| Temperature resolution | 0.1℃ |
| Temperature accuracy | ±0.2℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 500Ω |
| Power supply | 90 to 260 VAC |
| Weight | 0.85Kg |
Installation
